nVent Caddy 454016 nVent CADDY Superfix 454 Standard Duty, 3.976"–4.173" OD, 3 1/2" Pipe, 4" Copper Tube
- MPN: 454016
- UPC: 782856590590
- PPN: CAD-454016
- UNSPSC: 40141725
CAD
$37.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

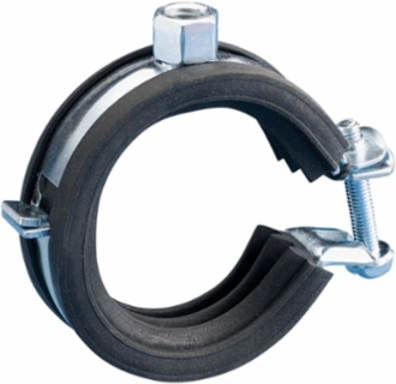

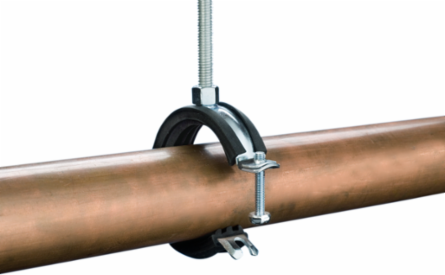

nVent CADDY Superfix 454 Standard Duty, 3.976"–4.173" OD, 3 1/2" Pipe, 4" Copper Tube
Features
- Recommended for the suspension of stationary non-insulated pipe lines
- Easy-to-close clamp for steel pipe and copper tube
- Unique hinged design eliminates the need to disassemble the clamp prior to installation

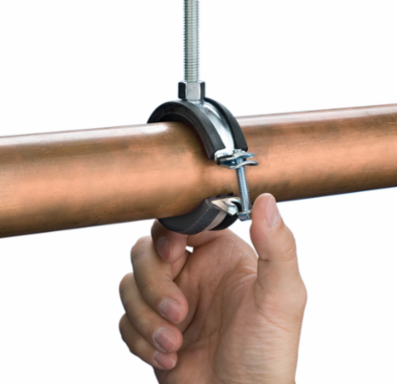

- Clamp can be closed with one hand, without ever turning a screw
- All-steel design of the closing mechanism retains strength even when exposed to heat
- Comes with a welded 3/8" cap nut, allowing easy attachment to threaded rod

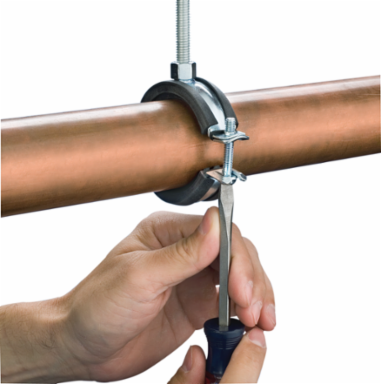

- Combo head bolt works with slotted, hex, or Phillips drivers
- Conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 12)
- Category II noise reduction according to DIN EN ISO 3822-1
- Compliant for sound insulation design according to DIN 4109
- Reaction-to-fire classification is "E" in compliance with DIN EN 13501-1
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Electrogalvanized
- Outer Diameter (OD)
- 101.6
- Copper Tube Size
- 4
- Static Load (F)
- 300
- Sub Brand
- CADDY
MaterialSteel
Temperature-50
Pipe Size3.5
Rod Size (RS)0.375
Static Load1,330
