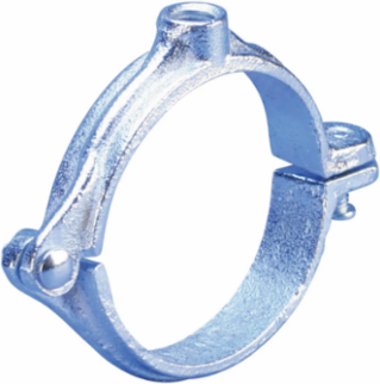

nVent Caddy 4550100PL 455 Malleable Split Ring Hanger, Plain, 1" Pipe, 1.315" OD, 3/8" Rod
- MPN: 4550100PL
- UPC: 782856368700
- PPN: CAD-4550100PL
- UNSPSC: 40141725
CAD
$4.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
455 Malleable Split Ring Hanger, Plain, 1" Pipe, 1.315" OD, 3/8" Rod
Features
- Recommended for the suspension of stationary non-insulated pipe lines
- Allows for piping runs close to ceiling or walls
- Conforms with Federal Specification WW-H-171 (Type 25), Manufacturers Standardization Society (MSS) SP-58 (Type 12)
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Finish
- Plain
- Outer Diameter (OD)
- 33.4
- Static Load (F)
- 180
- Sub Brand
- CADDY
MaterialCast Iron
Pipe Size1
Rod Size (RS)0.375
Static Load800
