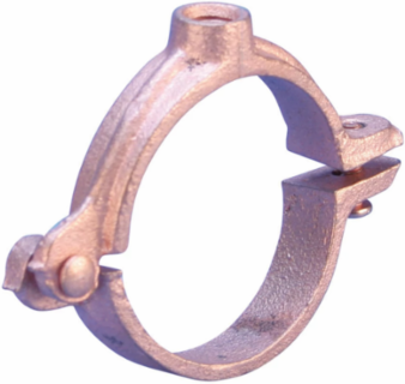

nVent Caddy 4560075CP 456 Malleable Split Ring Hanger for Copper Tube, 3/4" Tube, 7/8" OD, 3/8" Rod
- MPN: 4560075CP
- UPC: 782856368830
- PPN: CAD-4560075CP
- UNSPSC: 40141725
CAD
$5.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Quick closing hinged pipe clamp with threaded nut; for use with non-insulated copper pipe.Split Ring Hanger for Copper Tube
Features
- Recommended for the suspension of stationary non-insulated copper tube lines
- Allows for piping runs close to ceiling or walls
- Conforms with Federal Specification WW-H-171 (Type 25), Manufacturers Standardization Society (MSS) SP-58 (Type 12)
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Finish | Copper Electroplated |
| Outer Diameter (OD) | 22.2 |
| Static Load (F) | 180 |
| Sub Brand | CADDY |
| Material | Cast Iron |
|---|---|
| Copper Tube Size | 0.75 |
| Rod Size (RS) | 0.375 |
| Static Load | 800 |
