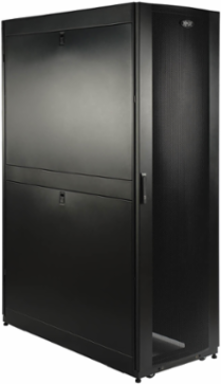

Tripp Lite SR45UBDP 45U Deep Rack Enclosure Cabinet, 1143mm Depth, 3000 lb Capacity
- MPN: SR45UBDP
- UPC: 037332174918
- PPN: TRP-SR45UBDP
CAD
$4174.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

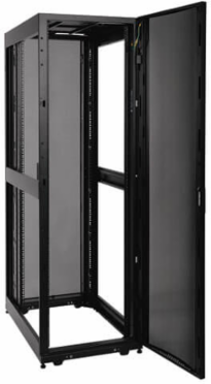

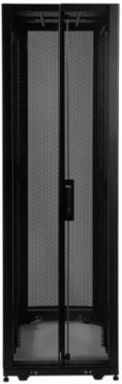

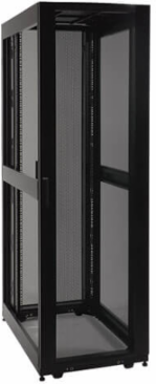

45U Deep Rack Enclosure Cabinet, 1143mm Depth, 3000 lb Capacity
Features
- Standard 24" (600mm) width for optimizing floor space
- 45" (1143mm) depth for extra space need for mounting deep equipment
- Ships fully assembled
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors; Locking, removable side panels keyed alike with doors

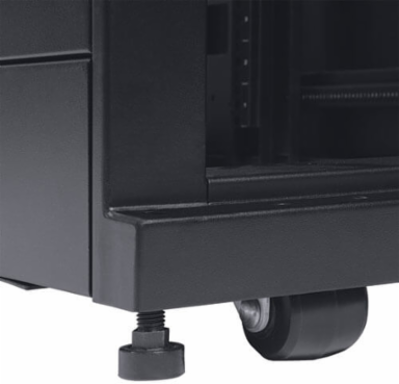

- Pre-installed casters and leveling feet
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
| Weight Capacity - Stationary | 3000 lb (1361 kg) |
|---|---|
| Maximum Device Depth | 42 in (106.68 cm) |
| Unit Weight | 340 lb (154.2 kg) |
| Shipping Dimensions (HxWxD) | 90.3 x 26 x 53 in (229.4 x 66 x 134.6 cm) |
| Rack Depth | Deep |
| Material Finish | Textured powder coat |
| Rear Door | Locking, reversible, removable split design |
| Casters | Pre-installed, removable, for minor position adjustments |

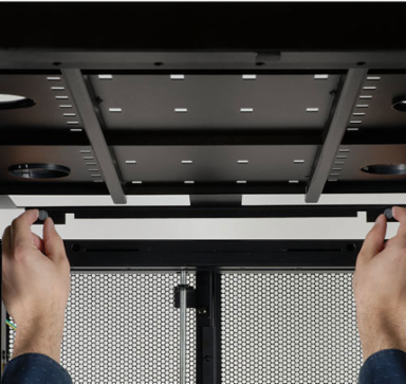

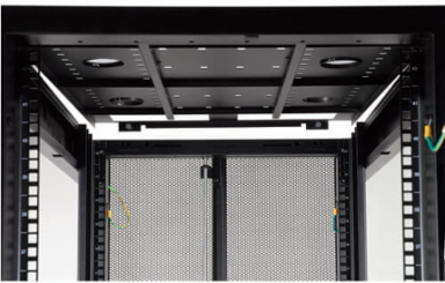

| Cable Access | Open bottom with top panel cable ports, removable without tools |
| Certifications | UL60950, RoHS, CE, IP20 Protection Rating, PCI DSS |
| Product Warranty Period | 5-year limited |

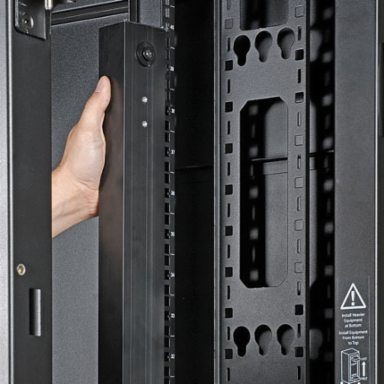

| Built-in Cable Management | Yes |
| Factory Preset Rack Depth | 28.125 in |
| Weight Capacity - Rolling | 2250 lb (1021 kg) |
|---|---|
| Rack Height | 45U |
| Unit Dimensions (HxWxD) | 83.75 x 23.63 x 47.3 in (212.7 x 60 x 120.1 cm) |
| Rack Type | Enclosure |

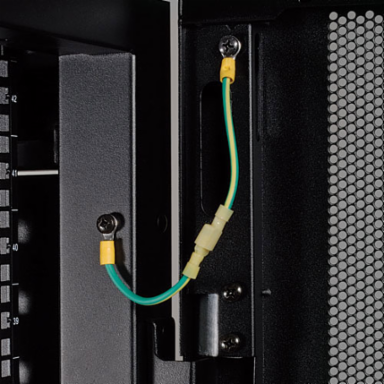

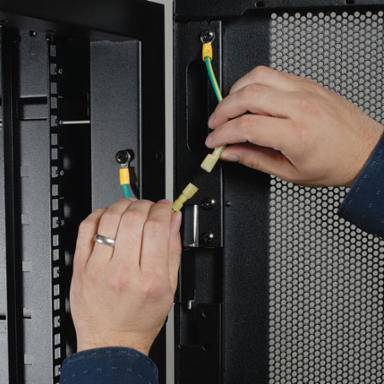

| Grounding | Front and rear threaded grounding points, quick-release ground wires on doors, front and back door frames |
| Front Door | Locking, reversible, removable |

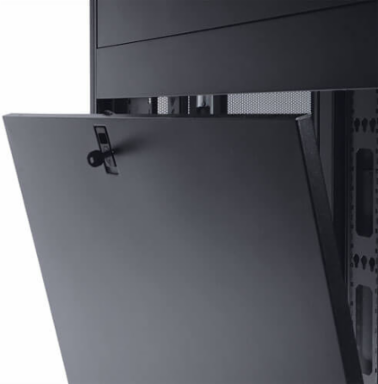

| Side Panels | Locking, removable, half size, keyed alike |
| Leveling Feet | Adjustable, removable |
| Ventilation | Massive front-to-rear ventilation, 65%+ open door perforation |
| Approvals | EIA/ECA-310-E |
| Color | Black |
| Minimum Device Depth | 4 in |
| UPC Code | 037332174918 |
