Tripp Lite SR45UBWDSP1 45U Wide Rack Enclosure Cabinet, 30 Inch Depth, 3000 lb Capacity
- MPN: SR45UBWDSP1
- UPC: 037332175236
- PPN: TRP-SR45UBWDSP1
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

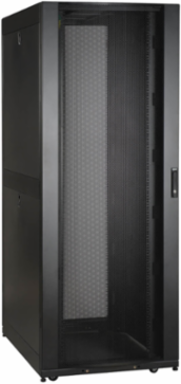

45U Wide Rack Enclosure Cabinet, 30 Inch Depth, 3000 lb Capacity
Features

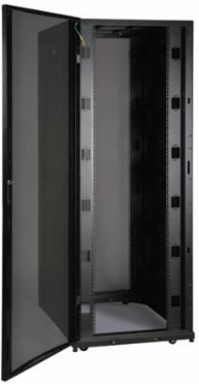

- 30" (750mm) wide and 42" (1050mm) deep 45U enclosure with doors and side panels

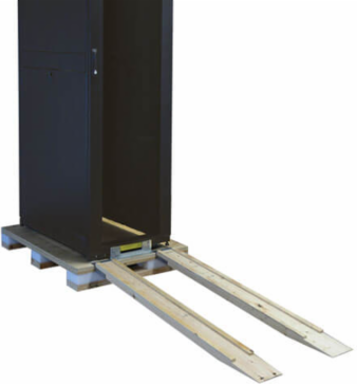

- Ships fully assembled on shock pallet with loading ramps

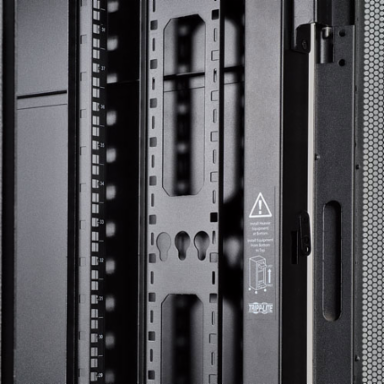

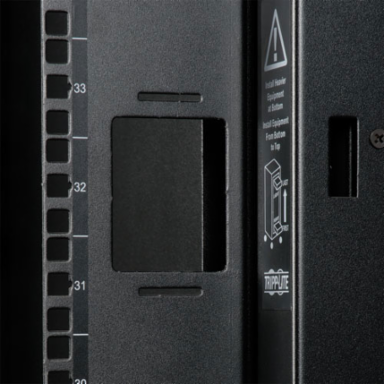

- 4 interior vertical posts with unthreaded square hole openings

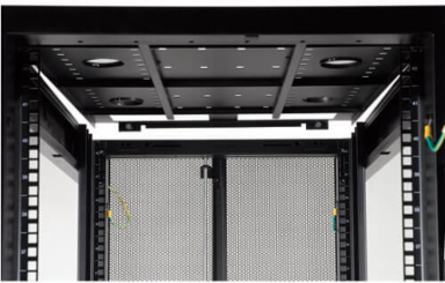

- Massive front to rear ventilation capacity

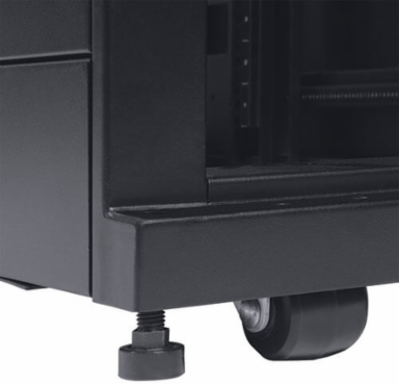

- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors

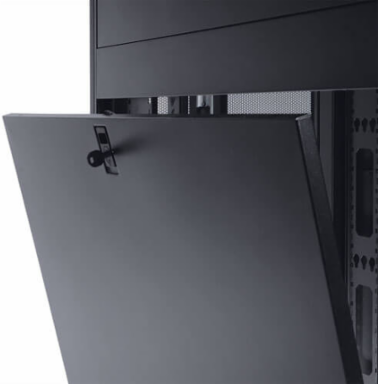

- Locking, removable side panels keyed alike with doors
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
| Rack Height | 45U |
|---|---|
| Weight Capacity - Rolling | 2250 lbs |
| Minimum Device Depth | 4 in. |
| Factory Preset Rack Depth | 27.75 in. |
| Shipping Dimensions (H x W x D) | 90.3 x 31 x 45 in. |
| Shipping Weight | 390 lbs |

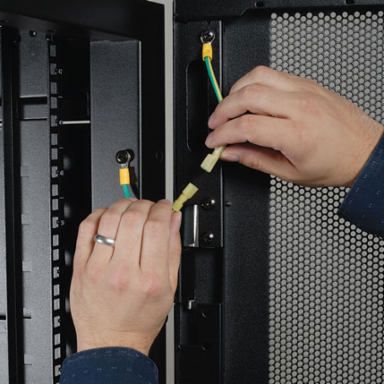

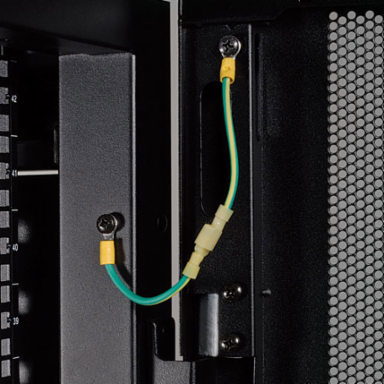

| Grounding Lug | Front and rear door frames; enclosure frame grounded |
| Certifications | UL60950, RoHS, CE, IP20 Protection Rating |
| Warranty | 5-year limited warranty |
| Weight Capacity - Stationary | 3000 lbs |
|---|---|
| Maximum Device Depth | 37 in. |
| Rack Depth | Standard |
| Unit Dimensions (H x W x D) | 83.75 x 29.53 x 43 in. |
| Unit Weight | 340 lbs |
| Color | Black |

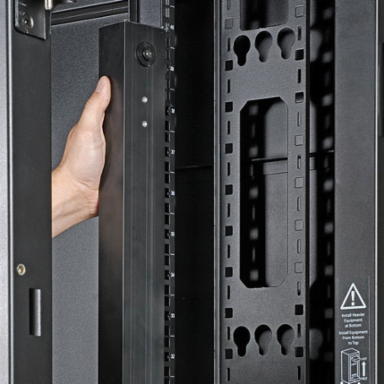

| Built-in Cable Management | Yes, with ports and open-bottom cable access |
| Approvals | EIA/ECA-310-E |
