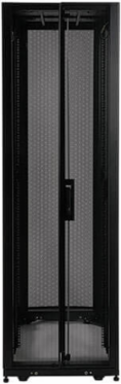

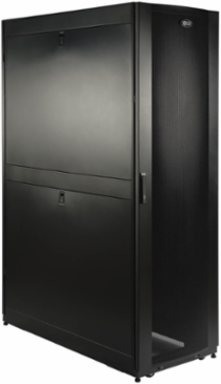

Tripp Lite SR48UBDP 48U SmartRack DEEP Premium Enclosure includes doors and side panels
Tripp Lite SR48UBDP 48U SmartRack DEEP Premium Enclosure includes doors and side panels
- MPN: SR48UBDP
- UPC: 037332185181
- PPN: TRP-SR48UBDP
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

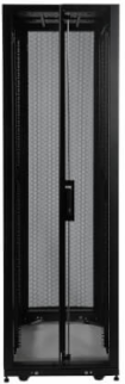

48U SmartRack DEEP Premium Enclosure includes doors and side panels
Features
- 45" (1143mm) depth for mounting extra-deep equipment
- Standard 24" (600mm) width for optimizing floor space
- Ships fully assembled
- 3000 lb stationary / 2250 lb rolling load capacity

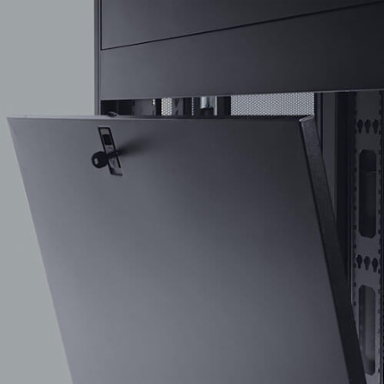

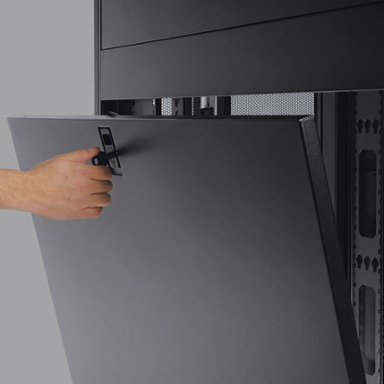

- Locking, removable, reversible front and rear doors; Locking, removable side panels keyed alike with doors

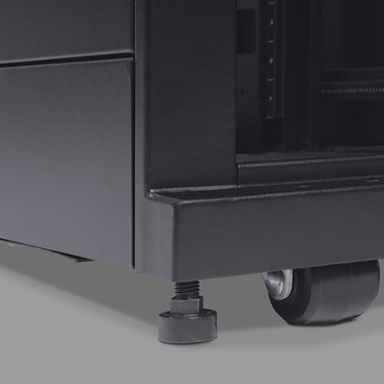

- Pre-installed casters and leveling feet; Rolls through standard 7 foot doorway
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
- 5-year limited warranty
Specifications
Certifications
- Certifications
- UL60950; RoHS; CE; IP20 Protection Rating
ApprovalsEIA/ECA-310-E
Physical
- Color
- Black
- Maximum Device Depth (in.)
- 42
- Rack Height
- 48U
- Shipping Weight (lbs.)
- 395.00
- Unit Weight (lbs.)
- 315
- Weight Capacity - Stationary (lbs.)
- 3000
Factory Preset Rack Depth (in.)28.125
Minimum Device Depth (in.)4
Shipping Dimensions (hwd / in.)95.00 x 26.00 x 52.75
Unit Dimensions (hwd / in.)89 x 23.63 x 47.25
Weight Capacity - Rolling (lbs.)2250
Rack DepthDeep
Overview
- UPC Code
- 037332185181
Rack TypeEnclosure
Special Features
- Grounding Lug
- Front and Back door frames
Built-in Cable ManagementNo
Warranty
- Product Warranty Period (Worldwide)
- 5-year limited warranty
Downloads
