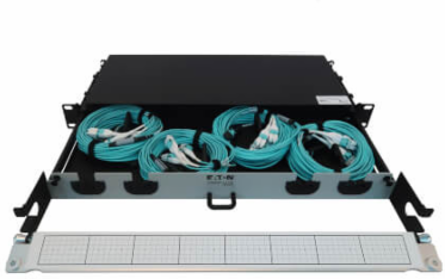

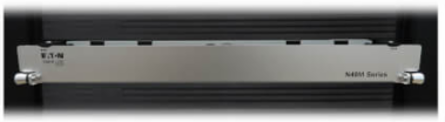

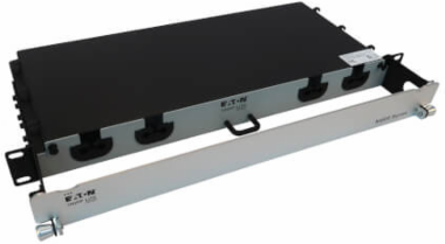

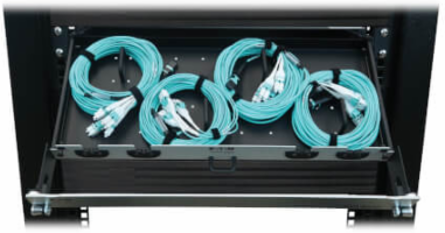

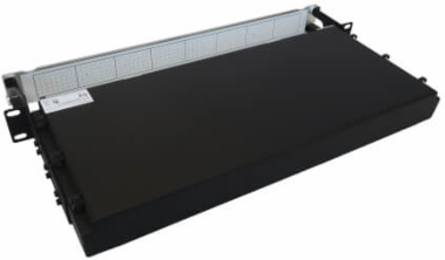

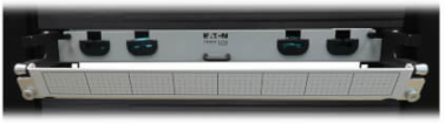

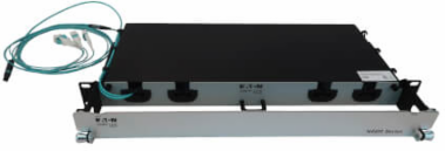

Tripp Lite N48M4M8L410 Preloaded Fiber Panel, 1U - 4x (12F MTP/MPO-PC to 4x LC Duplex F/M) 8F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

MPN: N48M4M8L410
UPC: 037332262189
PPN: TRP-N48M-4M8L4-10

$2754.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Preloaded Fiber Panel, 1U - 4x (12F MTP/MPO-PC to 4x LC Duplex F/M) 8F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

Features

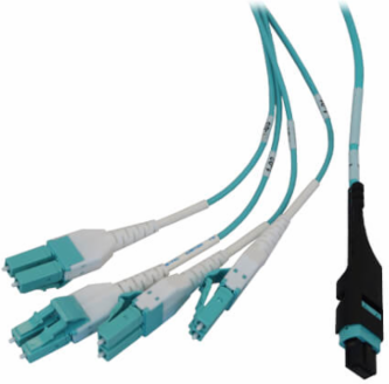

(4) MTP/MPO-PC to LC Duplex trunk cables, 10 m (32.8 ft.)
Installation guide included

Documentation & Downloads

Specifications

Dimensions

Panel Dimensions	17.32 x 1.73 x 10.20 in
Fiber Cable Length	10 m (32.8 ft)
Side B Connector	(4) LC Duplex (Male)
Number of Fibers	8
Core Diameter	50
Cable Outer Diameter	2.9 mm
Offset Ports	No

Panel Cable Number	4
Side A Connector	12F MPO (Female)
Optical Port	LC; MPO/MTP
Clad Diameter	125
Primary Coating Diameter	245
Primary Form Factor	Rackmount

Material

Product Type	Preloaded
Panel Style	Preloaded Fiber Panel
Cable Jacket Color	Aqua
Cable Jacket Rating	OFNP

Technology	Multimode
Endface Polish	PC
Connector Color	Aqua; Black; White
All-in-One Kit	Yes

Compliance

Product Warranty Period	Lifetime limited warranty

Performance

Network Compatibility	40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 850NM	3.0 dB/km
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)

Wavelength	1300nm; 850nm
Attenuation @ 1300NM	1.0 dB/km
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Humidity Range	5% to 85% RH, Non-Condensing
