Hubbell Premise Wiring

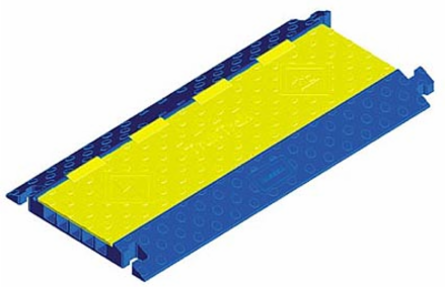

Hubbell Premise Wiring HBLTT5B TrukTrak Modular Cable Protection System - 5 Channel, 36 Inch Length, 20 Inch Width

TrukTrak Modular Cable Protection System - 5 Channel, 36 Inch Length, 20 Inch Width
  • MPN: HBLTT5B
  • UPC: 783585537016
  • PPN: HBL-HBLTT5B

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1531.78/ EA

Description

TrukTrak Modular Cable Protection System - 5 Channel, 36 Inch Length, 20 Inch Width

Specifications

Maximum Load lbs. (N) @ 21°C
20,150 lbs. (89,627 N)
Operating Temperature
-40°F to +120°F (-40°C to +49°C)
Length
36 in. (914.4 mm)
Height
2.31 in. (57.2 mm)
Channel Height
1.25 in. (31.8 mm)
Material
Cast polyurethane
Safety Symbols
ANSI Z535.3-1991
Product Line
hbltt5a-diagram
Maximum Load lbs. (N) @ 48°C9,200 lbs. (40,921 N)
# of Channels5 Channel
Width20 in. (508 mm)
Channel Width1.25 in. (31.8 mm)
Weight29 lbs. (13.2 kg)
Hinge MaterialReinforced fiberglass
Colorblue-yellow
TrukTrak Variety36" Trak
