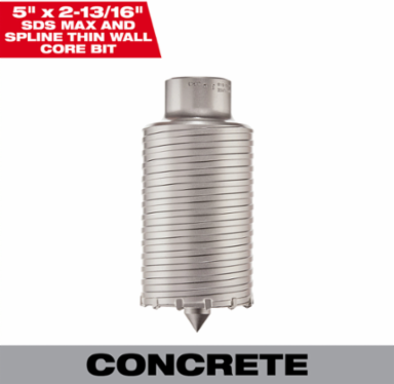

Milwaukee Tool 48-20-5060 SDS Max and SPLINE Thin Wall Carbide Tipped Core Bit 5"
Milwaukee Tool 48-20-5060 SDS Max and SPLINE Thin Wall Carbide Tipped Core Bit 5"
- MPN: 48-20-5060
- UPC: 045242105557
- PPN: MIL-48-20-5060
- UNSPSC: 20121607
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$304.47/ EA
Description
Milwaukee's core bits are ideal for large hole drilling where depth is relatively shallow. The core bit cuts a Kerf only. The usable depth of thick wall core bits is 4-3/8 in. The inside core must be removed by the operator before deeper drilling can be accomplished. The thick wall construction is ideal for larger hammers and more seasoned/cured concrete. A 7-1/2 in. extension is available to allow for the deeper holes to be drilled. The appropriate (Dependant on the diameter) SDS Plus drive shank must be used to drive the core bit. Use 48-20-6155 center pin and 48-20-6162 guide plate for positioning and starting the hole. Thin wall core bits are available from 1 in. to 6 in. diameters. See thick wall core bits for cured concrete and/or larger hammers.
Features
- 5" Diameter
- Includes Core Body with Guide Plate & Centering Pin
- Thin Wall Design
- Usable Cuting Depth 2-13/16"
- Use with 12" Spline Adapter Shank (48-03-3540) or 12" SDS Max Adapter Shank (48-03-3574)
- Use With 7-1/2" Extension 48-95-6075
- Use With Guide Plate 48-20-6162 and Centering Pin 48-20-6155
Specifications
Specifications
- Bit Type
- Masonry
- Drilling Depth
- 3 in
- Country of Origin
- Japan
Depth5 Inches
MaterialHigh Speed Steel
