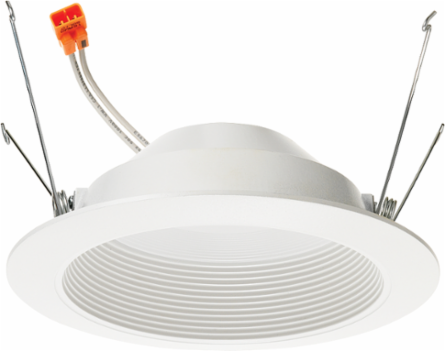

Acuity Brands 5RLD G3 07LM 27K 90CRI 120 FRPC WWH M6 5" Juno Basics Retrofit Downlight, Generation 3, 700 Nominal Lumens, 2700K, 90+ CRI, 120V, Forward/Reverse Phase Cut, White, White Trim Ring
- MPN: 5RLD G3 07LM 27K 90CRI 120 FRPC WWH M6
- UPC: 190887658507
- PPN: LTH-5RLD G3 07LM 27K 90CRI 120 FRPC WWH M6
- UNSPSC: 39111515
CAD
$27.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
5" Juno Basics Retrofit Downlight, Generation 3, 700 Nominal Lumens, 2700K, 90+ CRI, 120V, Forward/Reverse Phase Cut, White, White Trim Ring
Features
- With Juno Retrofit LED Basics Series 5RLD 5-inch trim modules, upgrading your existing 5-inch recessed fixture is inexpensive and nearly as simple as replacing an incandescent lamp. Modules feature a white aluminum baffle with a built-in flange. A deeply regressed diffusing lens conceals the LEDs from direct view and provides uniform aperture luminance.
- 2700K color temperature, with exceptionally accurate color rendering of 90 plus CRI
- The 5RLD LED retrofit outputs up to 700 lumens of high-quality light, providing energy savings of as much as 85 percent
- Dimmable to 5 percent with many incandescent, magnetic low voltage or electronic low voltage box dimmers
- Trims are ENERGY STAR certified and be used to comply with Title 24, JA8 high efficacy light source requirements
- 120 volts and fast, easy retrofit installation in almost any medium-base 5 in. housing using included socket adapter and quick connect
- Rated for 50,000 hours at 70 percent lumen maintenance
- Wet location listed (Indoor covered ceilings only)
- Emergency battery currently not available
- 5 year warranty
- Dimensions (Length x Height): 6-3/8 in. x 2-1/4 in.
- Energy saving
- Dimmable to 5 percent
- Wet location listed
- Dimmable light, energy saving light, retrofit light
Documentation & Downloads
Specifications
Key Specifications
- Environment
- Indoor
- Application Type
- Healthcare,Residential,Retrofit
- Airtight Rating
- No
- Hardware Included
- Yes
- Contains Mercury
- No
- Expected Life
- 50,000 hours
- Color Rendering Index Output
- 90
- Correlated Color Temperature (Non-LED)
- 2700 K
- Lumen Output
- 700 LM
- LED Fixture Wattage
- 13.5
- Voltage Rating
- 120
- Is Product Dimmable
- Yes
- Contains Lithium Battery
- No
- Shape
- Round
- Lens Included
- Yes
- Lens Color Family
- White
- New Construction or Remodel (Attribute)
- Retrofit
- Aperture Inside Diameter
- 2.70
- Fixture Length
- 8
- Fixture Height
- 3.5
ApplicationRetrofit Kits
Is CSA CertifiedNo
Country Of OriginCN
Power ConnectionPlug-In
Light SourceLED - Static
Color Rendering Index90
Correlated Color Temperature (LED)2700 K
Light ColorSoft White
Total Fixture Wattage13.5
Nominal Wattage13.5
Maximum Operating Temperature25
Dimmable Range100% to 5%
Primary MaterialAluminum
ColorWhite
Lens MaterialPolycarbonate
Daylight SensingNo
Aperture Size5 IN
Trim StyleBaffle
Fixture Width8
Fixture Weight1
