Mersen A051B1DAR0-19R 5 kV Bolt-On Fuse for Medium Voltage Motors, 3 Inch Barrel, R-Rated

MPN: A051B1DAR0-19R
UPC: 782001801977
PPN: FER-A051B1DAR0-19R

$4985.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

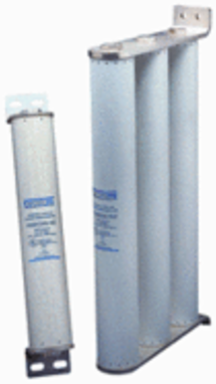

Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses are single, double, triple or quadruple barrels 3 inches diameter with end mounts designed for bolting directly to equipment bus or terminal pads

Features

Amp-Trap: 3" Barrel 2 lb tripped force - 0.50 Inch
Current-limiting for superior equipment protection.
Blown-fuse indicator to give positive identification of open fuse.
The Amp-Trap Bolt-in series are UL Recognized.
Bolt-in mounting for direct connection to bus or terminals.
Metal embossed catalog number and manufacturing date for lasting identification.

Specifications

Product Details

ROHS Compliant	Consult Technical Services
Speed / Characteristic	R-Rated
Body Material	GMG
Ampere Range	2R to 38R A
UL Certification	E93367 MSSS2.E93367
Connection Terminal Type	Bolt-on
Lead Free	Consult Technical Services
Standards	UL Recognized to E93367

Mounting	Bolt-on
I.R. AC	50 kA 65 kA
Materials Contact	Silver-Plated Copper
CE conformity	Consult Technical Services
AC Voltage Range	5.08 kV VAC
Applications	Protection for 5.5kV Motors
Body Style	Ferrule
