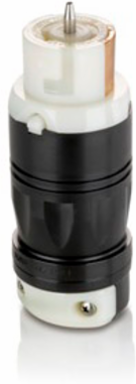

Leviton CS6360C 50 Amp 125 Volt Industrial Grade Locking Connector, Nylon Housing, Non-NEMA
- MPN: CS6360C
- UPC: 078477326015
- PPN: LEV-CS6360C
CAD
$222.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

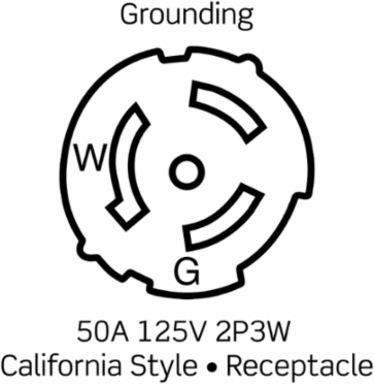

50Amp, 125V AC, Non-NEMA, 2P, 3W, Black & White Locking Connector, Industrial Grade, Grounding, California-Style(CS) – BLACK-WHITE
Features
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Limited Lifetime Warranty
NOM057
UL 498File E13399
Material Specifications
- Assembly Screws
- Brass
- Center Pin
- SS 302/304
- Compression Nut, Strain Relief
- Nylon
- Contact - Binding Plate
- 0.100-inch thick Brass
- Dust Shield
- Santoprene TPE
- Grommet/Gasket
- Santoprene TPE
- Ground Shunt
- Bronze
- Housing Material
- Nylon
- Plug Blade Shroud
- SS 302/304
- Terminal Block
- 0.062-inch thick Copper
- Wiring Chamber
- Nylon
Cable Clamp ScrewPhilips Head, SS 304
ColorBlack-White
Connector Contact - Spring0.041-inch thick Brass
Contact RivetBrass
Face ModuleNylon
Ground PostBrass
HousingNylon
Plug Blade0.1000inch thick Brass
Standard Cable ClampNylon
Terminal Set ScrewSS 302/304
Mechanical Specifications
- Amperage
- 50 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Grounding
- Grounding
- Pole
- 2
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Terminal ID
- X, W, Y, and Green for ground
- Voltage
- 125 VAC
Cord Range.680 - 1.125
Dielectric Voltage Withstand2000V minimum per UL 498
Maximum Working Voltage125V as rated
Product IDRatings and Catalogue No. molded into face and stamped into shroud
Terminal Accom.AWG #10 to #4 Stranded Wire
Torque Range20-30 in-lbs
Wire3
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Connector
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityUL94 V-2
