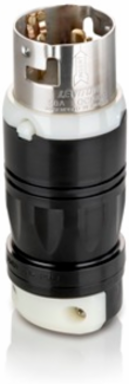

Leviton CS8165C 50 Amp 480 Volt Black & White Locking Plug, Industrial Grade, Nylon Housing
- MPN: CS8165C
- UPC: 078477326343
- PPN: LEV-CS8165C
CAD
$193.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
50Amp, 3-Phase 480V AC, Non-NEMA, 3P, 4W, Black & White Locking Plug, Industrial Grade, Grounding, California-Style(CS) – BLACK-WHITE
Features
- One piece contacts reduce friction and overheating
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Ratings and NEMA I.D. permanently marked on device
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Limited Lifetime Warranty
NOM057
UL 498File E13399
Material Specifications
- Assembly Screws
- Brass
- Color
- Black-White
- Connector Contact - Spring
- 0.041-inch thick Brass
- Contact Rivet
- Brass
- Face Module
- Nylon
- Ground Post
- Brass
- Housing
- Nylon
- Plug Blade
- 0.1000-inch thick Brass
- Standard Cable Clamp
- Nylon
- Terminal Set Screw
- SS 302/304
Cable Clamp ScrewPhilips Head, SS 304
Compression Nut, Strain ReliefNylon
Contact - Binding Plate0.100-inch thick Brass
Dust ShieldSantoprene TPE
Grommet/GasketSantoprene TPE
Ground ShuntBronze
Housing MaterialNylon
Plug Blade ShroudSS 302/304
Terminal Block0.062-inch thick Copper
Wiring ChamberNylon
Mechanical Specifications
- Amperage
- 50 A
- Current Interrupting
- Certified for current interrupting at full rated current
- Grounding
- Grounding
- Phase
- 3-Phase
- Product ID
- Ratings and Catalogue No. molded into face and stamped into shroud
- Terminal Accom.
- AWG #10 to #4 Stranded Wire
- Torque Range
- 20-30 in-lbs
- Wire
- 4
Cord Range.680 - 1.125
Dielectric Voltage Withstand2000V minimum per UL 498
Maximum Working Voltage3-Phase 480V as rated
Pole3
Temperature RiseMax 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current

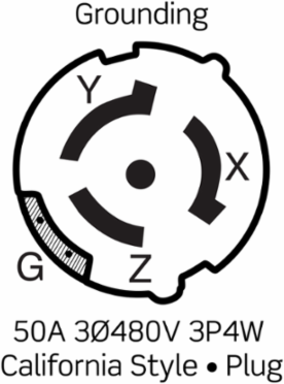

Terminal IDX, W, Y, Z and Green for ground
Voltage480 VAC
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Plug
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 75°C
FlammabilityUL94 V-2
