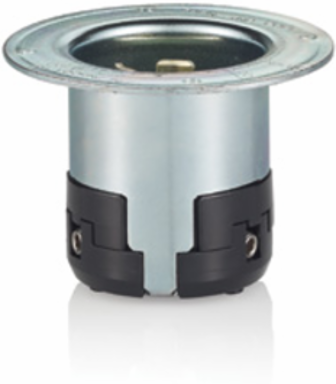

Leviton CS8175 50 Amp Locking Flanged Inlet, 480 Volt, 3-Phase, Industrial Grade
- MPN: CS8175
- UPC: 078477326374
- PPN: LEV-CS8175
CAD
$196.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
50Amp, 480V 3-Phase, Non-NEMA, 3P, 4W, Black & White Locking Flanged Inlet, Industrial Grade, Grounding, California-Style(CS) – GRAY METAL
Features
- Captive, quick drive assembly screws for faster assembly
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| RoHS | Compliant |
| Warranty | Lifetime Limited |
| NOM | 057 |
|---|---|
| UL498 | File E13399 |
Material Specifications
| Body and Contract Carrier | Reinforced Nylon |
|---|---|
| Face Module | Nylon |
| Ground Shunt | Bronze |
| Inlet Blade | 0.100inch thick Brass |
| Terminal Set Screw | SS 302/304 |
| Color | Gray Metal |
|---|---|
| Flanged Casing | Zinc Plated Steel |
| Grounding Shunt Rivet | Brass |
| Terminal Block | 0.062inch thick Copper |
Mechanical Specifications
| Product ID | Ratings and Catalogue No. molded into face |
|---|---|

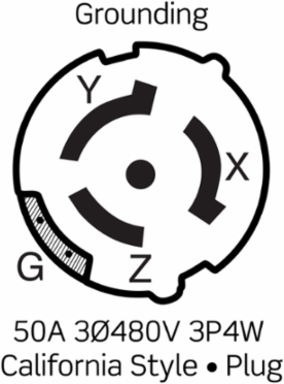

| Terminal ID | X, W, Y, Z and Green for ground |
| Terminal Accom. | #10 min to #4max AWG Solid or Stranded Wire |
|---|
Product Features
| Brand | Black and White |
|---|---|
| NEMA | Non-NEMA |
| Device Type | Locking Flanged Inlet |
|---|
Environmental Specifications
| Environment | Dry |
|---|---|
| Operating Temperature | -40°C to 75°C |
| Flammability | Rated V-2 per UL94 |
|---|
Electrical Specifications
| Amperage | 50 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Maximum Working Voltage | 3-Phase 480V as rated |
| Pole | 3 |
| Voltage | 480 VAC |
| Current Interrupting | Certified for current interrupting at full rated current |
|---|---|
| Grounding | Grounding |
| Phase | 3-Phase |
| Temperature Rise | Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current |
| Wire | 4 |
