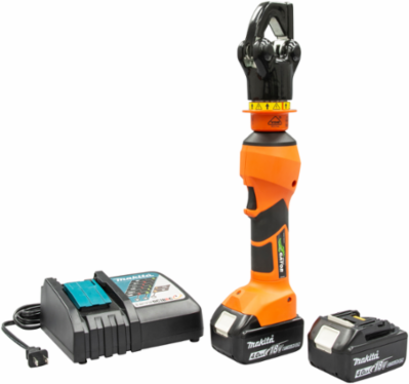

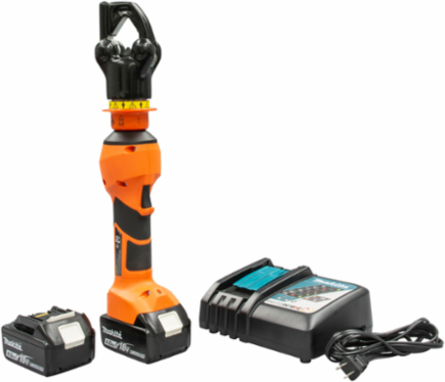

Greenlee EK6IDCVX11 6 Ton Insulated Crimper, 16 Inch Length, Crimping Capacity: 8 AWG - 500 kcmil Cu
- MPN: EK6IDCVX11
- UPC: 783310042624
- PPN: GRN-EK6IDCVX11
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
6 Ton Insulated Crimper, 16 Inch Length, Crimping Capacity: 8 AWG - 500 kcmil Cu
Features
- 1000v Insulation
- Brush guarded head - helps avoid accidental contact with conductors
- Tri-insulation barrier - Provides three (3) layers of protection (Patent Pending)
- 360° Rotating head - For improved agility in confined work spaces
- Double -tap safety feature option -Prevents unintentional operation
- Bluetooth® communicationConnects with Greenlee i-press® App
- Equipped with Intelli-crimp technology
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|---|
| Sub Brand | Gator |
| Standard | C/US UL Listed, IEC 62481-1; VDE, CSA, MET Tested |
| Crimping Force | Variable 3-6 Ton (30-60 kN) |
| Connector Type | Color-coded lugs and splices |
| Handle Type | In-Line Style with over molded rubber grip |
|---|---|
| Type | 6 Ton Crimping |
| Overall Length | 16 IN (406mm) |
| Crimping Capacity | Standard Strand, 8 AWG - 500 kcmil Cu, 1/0 AWG - 350 kcmil Al, Fine Strand, 8 AWG - 350 Kcmil CuDLO, 8 AWG - 373.3 Kcmil Cu |
