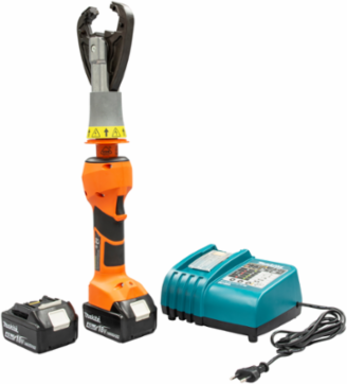

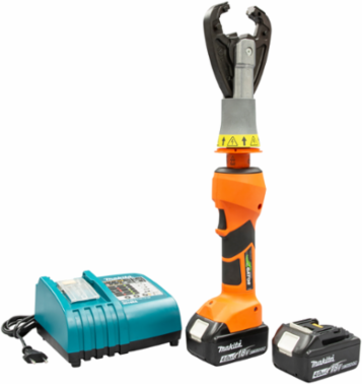

Greenlee EK425VXK22 6 Ton Insulated Die Style Crimper with 19 Inch Length and 12,000 lbs Crimping Force
- MPN: EK425VXK22
- UPC: 783310042105
- PPN: GRN-EK425VXK22
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
6 Ton Insulated Die Style Crimper with 19 Inch Length and 12,000 lbs Crimping Force
Features
- 1000v Insulation
- Brush guarded head - helps avoid accidental contact with conductors
- Tri-insulation barrier - Provides three (3) layers of protection (Patent Pending)
- 360° Rotating head - For improved agility in confined work spaces
- Double -tap safety feature option -Prevents unintentional operation
- Bluetooth® communicationConnects with Greenlee i-press® App
- Equipped with Intelli-crimp technology
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|---|
| Sub Brand | Gator |
| Standard | C/US UL Listed, IEC 62481-1; VDE, CSA, MET Tested |
| Crimping Force | 12,000 lbs. (53 kN) |
| Connector Type | Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices |
| Handle Type | In-Line Style with over molded rubber grip |
|---|---|
| Type | Die style crimper |
| Overall Length | 19 IN (482mm) |
| Crimping Capacity | Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR |
