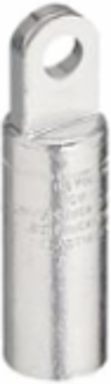

Thomas & Betts 03700350 600A 1H AL COMPR LUG 600 STR 700SOL
- MPN: 03700350
- UPC: 783786636013
- PPN: T-B-03700350
- UNSPSC: 39121405
CAD
$115.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25/35kV 600 Amp Series Deadbreak Compression Lug (Tin-Plated Aluminum). Conductor Size kcmil Compressed/Stranded 600 or Compacted/Solid 700. Length 5.94 inches. Diameter 1.38 Inches. 1-Hole Pad, .50 inch Thick. Hole Size .688 inch Diameter.
Specifications
Additional Information
- Application
- Used with 15/25/35kV 600 Amp Deadbreak Elbow and Splice products.
- Cable Size
- 650 kcmil750 kcmil
- Connection Type
- Compression
- Effective Date
- 19980115
- Material
- Aluminum
- Product Type
- Compression Lug
- Special Functions
- Tin Plated Aluminum. Hole Size .688 inch. Connectors can used with both Copper and Aluminum Conductors.
Brand / LabelElastimold
ColorSilver
Current Rating600 A
Insulation MaterialNone
Product NameELECTRICAL CONNECTOR,>1000V"
SizeLength 5.94 inch, Diameter 1.38 inch, Hole .688 inch Diameter.
Voltage Rating15 to 35 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4532 >> Cable or wire lug
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
