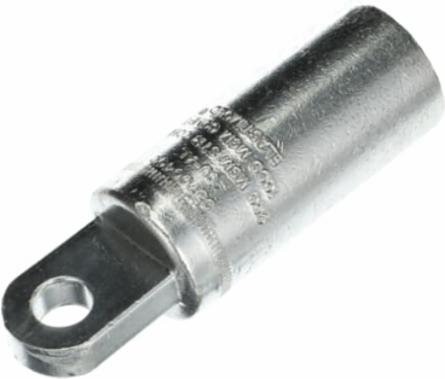

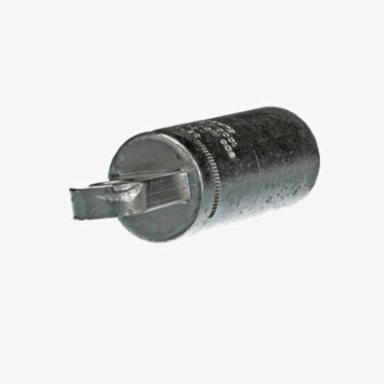

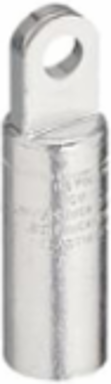

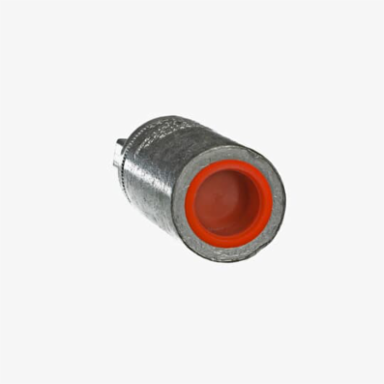

Thomas & Betts 03700400 600A 1H AL COMPR LUG 900STR 1000SOL
- MPN: 03700400
- UPC: 783786624072
- PPN: T-B-03700400
- UNSPSC: 39121405
CAD
$128.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25/35kV 600 Amp Series Deadbreak Compression Lug (Tin-Plated Aluminum). Conductor Size kcmil Compressed/Stranded 900 or Compacted/Solid 1000 /mmSquared Compact 500. Length 5.94 inches. Diameter 1.38 Inches. 1-Hole Pad, .50 inch Thick. Hole Size .688 inch Diameter.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4532 >> Cable or wire lug |
|---|
Additional Information
| Application | Used with 15/25/35kV 600 Amp Deadbreak Elbow and Splice products. |
|---|---|
| Cable Size | 900 to 1000 kcmil |
| Connection Type | Compression |
| Effective Date | 19980115 |
| Material | Aluminum |
| Product Type | Compression Lug |
| Special Functions | Tin Plated Aluminum. Hole Size .688 inch. Connectors can used with both Copper and Aluminum Conductors. |
| Brand / Label | Elastimold |
|---|---|
| Color | Silver |
| Current Rating | 600 A |
| Insulation Material | None |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Length 5.94 inch, Diameter 1.38 inch, Hole .688 inch Diameter. |
| Voltage Rating | 15 to 35 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
