Leviton

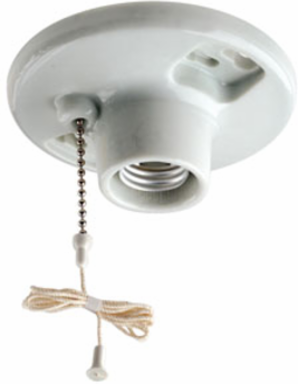

Leviton 29816-C Glazed Porcelain Incandescent Lampholder with Pull Chain

Glazed Porcelain Incandescent Lampholder with Pull Chain
  • MPN: 29816-C
  • UPC: 078477103050
  • PPN: LEV-29816-C

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$12.80/ EA

Description

660W/250V Medium Base One-Piece Glazed Porcelain Outlet Box Mount Incandescent Lampholder, Pull Chain, Single Circuit, Top Wired - White

Features

  • Leviton produces lamp holders for virtually every light source equipped with incandescent, fluorescent, or LED lamps. Lamp-holders include incandescent medium base, and specialty sizes & fluorescent lamp holders, in addition to a large line of porcelain lamp holders including pulse-rated mogul-base products, and an extensive selection of devices for high-intensity lamps.

Specifications

Standards and Certifications

CSA Certified
File LR-1863
UL ListedFile E3810

Material Specifications

Availability
Distribution
Circuit
Single Circuit
Fits Outlet Box Size
3-1/4 or 4 Inch
Mounting Type
Twist-Lock
Sequence
ON-OFF
Socket Shell Material
Aluminum
Body MaterialGlazed Porcelain
ColorWhite
Lamp Socket BaseMedium
Operator TypePull Chain
Shell MaterialAluminum
Termination2 Terminal Screws

Mechanical Specifications

Availability
Distribution
Circuit
Single Circuit
Construction
One-Piece
Lamp Socket Base
Medium
Operator Type
Pull Chain
Termination
2 Terminal Screws
Body MaterialGlazed Porcelain
ColorWhite
Fits Outlet Box Size3-1/4 or 4 Inch
Mounting TypeTwist-Lock
Socket Shell MaterialAluminum
Torque Range14 – 18 in.-lbs

Specifications

Country of Origin
China
RoHS CompliantFalse

Product Features

Lamp Base
Medium
Light Type
Incandescent
Lampholder TypeOutlet Box Mount

Electrical Specifications

Availability
Distribution
Construction
One-Piece
Lamp Socket Base
Medium
Mounting Type
Twist-Lock
Sequence
ON-OFF
Termination
2 Terminal Screws
Wiring Access
Top Wired
CircuitSingle Circuit
Fits Outlet Box Size3-1/4 or 4 Inch
Max. Lamp Wattage660W
Operator TypePull Chain
Standards and CertificationsUL/CSA, NOM
Warranty1-Year Limited
