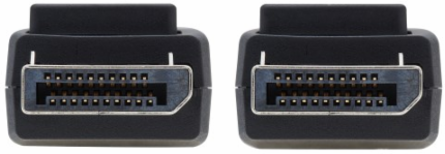

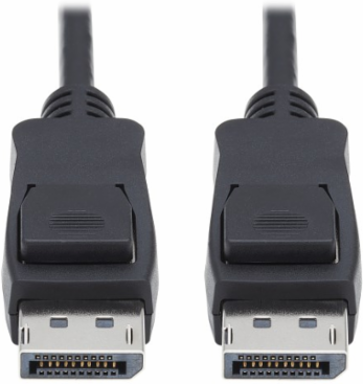

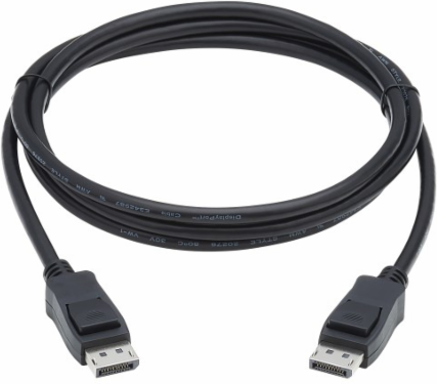

Tripp Lite P580006V4 DisplayPort 1.4 Cable with Latching Connectors, 8K @ 30Hz, HDR, M/M, Black, 6 ft
- MPN: P580006V4
- UPC: 037332255129
- PPN: TRP-P580-006-V4
CAD
$27.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
DisplayPort 1.4 Cable with Latching Connectors, 8K (M/M), Black, 6 ft. (1.8m)
Features
- P580-006-V4 DisplayPort 1.4 Cable with Latching Connectors, 8K, M/M, Black, 6 ft
Documentation & Downloads
Specifications
Dimensions
| Cable Length | 6 ft |
|---|---|
| Wire Gauge | 30 |
| Side A - Connector 1 | DisplayPort (Male) |
| Connector Style | Straight |
| Cable Outer Diameter | 6.0 mm |
|---|---|
| Minimum Bend Radius | 60mm |
| Side B - Connector 1 | DisplayPort (Male) |
| Integrated/Removable Cable | No |
Material
| Product Type | Passive Cable |
|---|---|
| Color | Black |
| Cable Jacket Material | PVC |
| Connector Plating | Nickel |
| Technology | DisplayPort |
|---|---|
| Material of Construction | PVC, ABS |
| Cable Jacket Rating | VW-1 |
Performance
| Max Supported Video Resolution | 7860 x 4320 (8K) @ 30Hz |
|---|---|
| HDR Support | Yes |
| Signal Transmission | Bidirectional |
| HDCP Specification | 2.2 |
| Storage Temperature Range | -40° to 158°F (-40° to 70°C) |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
| Max Supported Color Depth | 36-bit Deep Color |
|---|---|
| Chroma Sub Sampling | 4:2:0 |
| Displayport Specification | 1.4 |
| Operating Temperature Range | 32° to 113°F (0° to 45°C) |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
