Hubbell PATMD682ALLIFWCJ 6-Ton Battery Actuated Scissor Action Crimper & Cutter, 82 Inch Length
Hubbell PATMD682ALLIFWCJ 6-Ton Battery Actuated Scissor Action Crimper & Cutter, 82 Inch Length
- MPN: PATMD682ALLIFWCJ
- UPC: 621945461796
- PPN: BUR-50059987
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
PATMD-LW IN-LINE® 82” F711 Pole Tool with Angled Head, D3 Crimp Jaw, ACSR Cut Jaw, 3Ah Li-ion, AC.
Features

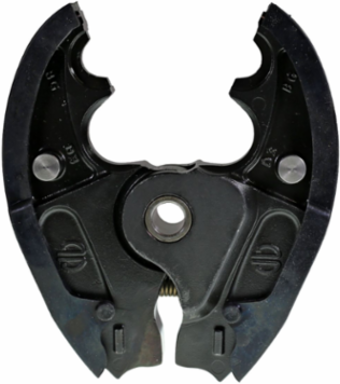

- Interchangeable scissor action crimping and cutting jaws available

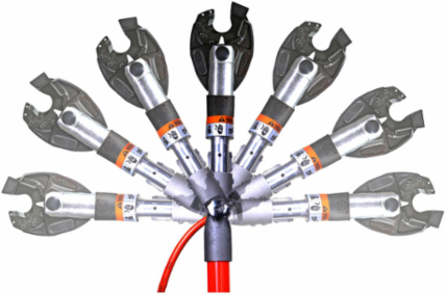

- 355° Head rotation
- Uses W and X dies
- Safety trigger lock and locking jaw tabs
- Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries
Specifications
Specifications
- Application - For Use On
- Interchangeable Jaws: Crimp: ACSR, Aluminum, Copper Code/Flex; Cut: ACSR (26/7), Aluminum (AAC), Copper (Soft Drawn), EHS Guy Wire (sold separately)
- Container Type
- No Case/Bag
- Crimp Force Capacity
- 6 ton
- Die Type
- W Die and X Die
- Dimension - Height inch
- 82
- Dimensions
- 82 in x 4.375 in x 2.75 in
- Length
- 82 in
- Power Source
- 120V-AC Charger
- Standards - RoHS Compliance Status
- UI
- Warranty
- 5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
- Width
- 4.375 in
- Battery Type
- 3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- Certification Agency
- Proposition 65
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- Recharge Time
- 0.5 hr
- Series
- PATRIOT® IN-LINE® Series
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 33.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet Height
- 44.250 in
- Pallet Weight
- 969.000 lb.
ChannelSightWidgetId705
Country of OriginUS
Description - SlangPATMDLW, IN-LINE, scissor action, 6-ton
Dimension - Depth inch2.75
Dimension - Width inch4.375
Height2.75 in
Operating Voltage18 VDC
Product Type6-Ton IN-LINE®
Trade NamePATRIOT® IN-LINE®
Weight13 lb.
ApplicationCrimping and Cutting
TypeCrimper and Cutter
Class CodeB82
Harmonization Code8467290090
Sub Class CodeB82B82B
Crimping RangesWith Appropriate Jaw: Crimping Capacity: Copper: #10 sol.-500 kcmil, Copper Flex: #8 AWG-350 kcmil, Aluminum: #14 sol.-350 kcmil, ACSR: #14 sol.-4/0 AWG; Cutting Capacity: ACSR (26/7) up to 556.5 kcmil, Aluminum (AAC) up to 636 kcmil, Copper (Soft Drawn) up to 600 kcmil, EHS Guy Wire up to 3/8"
Tool TypeBattery Actuated Scissor Action
BOX SIZE9.625x6.563x31.813 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00621945461796
Pallet - GTIN - Package70621945461795
Pallet Length48.000 in
Pallet Width40.000 in
