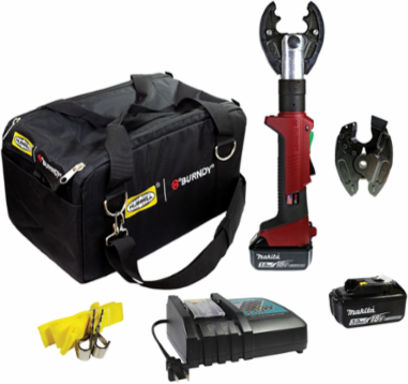

Burndy PATMD14003A3 6T IN-LINE® Crimping and Cutting Tool, 3Ah Li-ion, 18.73 Inch x 4.375 Inch x 2.75 Inch
Burndy PATMD14003A3 6T IN-LINE® Crimping and Cutting Tool, 3Ah Li-ion, 18.73 Inch x 4.375 Inch x 2.75 Inch
- MPN: PATMD14003A3
- UPC: 621945562813
- PPN: BUR-PATMD14003A3
- UNSPSC: 27112750
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
PATMD-LW IN-LINE® 6T Scissor Action, BG/D3 Crimp Jaw, ACSR Cut Jaw, 3Ah Li-ion, AC, Nylon Pro Bag.
Features
- Interchangeable scissor action crimping and cutting jaws available
- 355° Head rotation
- Uses W and X dies
- Safety trigger lock and locking jaw tabs
- LED Worklight
- Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries
Specifications
Specifications
- Application - For Use On
- Interchangeable Jaws: Crimp: ACSR, Aluminum, Copper Code/Flex; Cut: ACSR (26/7), Aluminum (AAC), Copper (Soft Drawn), EHS Guy Wire (sold separately)
- Container Type
- Nylon Pro Bag
- Crimp Force Capacity
- 6 ton
- Die Type
- W Die and X Die
- Each - Width
- 4.375 in
- Length
- 18.73 in
- Power Source
- 120V-AC Charger
- Trade Name
- PATRIOT® IN-LINE®
- Battery
- 3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- Sub Brand
- PATRIOT® IN-LINE® Crimp/Cut Kit
- Warranty
- 5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
- Width
- 4.375 in
- ARRA Compliant
- No
- Class Code
- B82
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- Order Multiple
- 1 EA
- Sub Class Code
- B82B82B
- Crimping Ranges
- With Appropriate Jaw: Crimping Capacity: Copper: #10 sol.-500 kcmil, Copper Flex: #8 AWG-350 kcmil, Aluminum: #14 sol.-350 kcmil, ACSR: #14 sol.-4/0 AWG; Cutting Capacity: ACSR (26/7) up to 556.5 kcmil, Aluminum (AAC) up to 636 kcmil, Copper (Soft Drawn) up to 600 kcmil, EHS Guy Wire up to 3/8"
- Tool Type
- Battery Actuated Scissor Action
- BOX SIZE
- 11.875x19.563x16.063 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945562813
- Each - Number of Sub Packs
- 1
- Lowest Level UOM
- Each
- Pallet Height
- 41.375 in
- Pallet Weight
- 45.000 lb.
Buy American CompliantNo
Country of OriginUS
Description - SlangPATMDLW, IN-LINE, scissor action, 6-ton
Dimensions18.73 in x 4.375 in x 2.75 in
Height2.75 in
Operating Voltage18 VDC
Product Type6-Ton IN-LINE®
ApplicationCrimping and Cutting
Size18.73 in x 4.375 in x 2.75 in
TypeCrimper and Cutter
Weight5.55 lb.
Battery Type3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Certification AgencyProposition 65
Description - Invoice6T INLINE, BG/D3, ACSR, 3Ah, AC, Bag
Harmonization Code8467290090
MSDS FlagYes
Stock IndicatorS - Shelf Stock
Recharge Time0.5 hr
SeriesPATRIOT® IN-LINE® Series
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet - GTIN - Package70621945562812
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
