Burndy

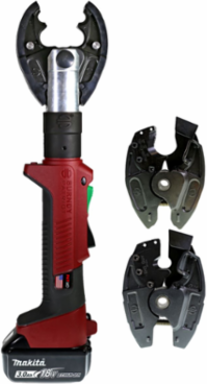

Burndy PATMD14603A1 6-Ton IN-LINE® Crimper & Cutter with 3Ah Li-Ion Battery, 19.25 Inch Size

6-Ton IN-LINE® Crimper & Cutter with 3Ah Li-Ion Battery, 19.25 Inch Size
  • MPN: PATMD14603A1
  • UPC: 621945546585
  • PPN: BUR-PATMD14603A1
  • UNSPSC: 27112750

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

PATMD-LW IN-LINE® 6T Scissor Action, BG/D3 Crimp Jaw, ACSR & GUY Cut Jaws, 3Ah Li-ion, AC, Utility Bag.

Features

  • Interchangeable scissor action crimping and cutting jaws available
  • 355° Head rotation
  • Uses W and X dies
  • Safety trigger lock and locking jaw tabs
  • LED Worklight
  • Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries

Specifications

Specifications

Country of Origin
United States
ChannelSightWidgetId
705
Crimp Force Capacity
6 ton
Die Type
W Die and X Die
Height
2.75 in
Operating Voltage
18 VDC
Product Type
6-Ton IN-LINE®
Application
Crimping and Cutting
Size
19.25 in x 4.375 in x 2.75 in
Warranty
5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
Width
4.375 in
Class Code
B82
Harmonization Code
8467290090
Sub Class Code
B82B82B
Crimping Ranges
With Appropriate Jaw: Crimping Capacity: Copper: #10 sol.-500 kcmil, Copper Flex: #8 AWG-350 kcmil, Aluminum: #14 sol.-350 kcmil, ACSR: #14 sol.-4/0 AWG; Cutting Capacity: ACSR (26/7) up to 556.5 kcmil, Aluminum (AAC) up to 636 kcmil, Copper (Soft Drawn) up to 600 kcmil, EHS Guy Wire up to 3/8"
Tool Type
Battery Actuated Scissor Action
BOX SIZE
7.665x24.313x10.333 (in)
Carton - Number of Sub Packs
1
Carton - SCC-14 Next Lower Level Sub Pack
00621945546585
Pallet - GTIN - Package
70621945546584
Pallet Length
48.000 in
Pallet Width
40.000 in
Application - For Use OnInterchangeable Jaws: Crimp: ACSR, Aluminum, Copper Code/Flex; Cut: ACSR (26/7), Aluminum (AAC), Copper (Soft Drawn), EHS Guy Wire (sold separately)
Container TypeHard Case
Description - SlangPATMDLW, IN-LINE, scissor action, 6-ton
Dimensions19.25 in x 4.375 in x 2.75 in
Length19.25 in
Power Source120V-AC Charger
Trade NamePATRIOT® IN-LINE®
Battery3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
TypeCrimper and Cutter
Weight5.55 lb.
Battery Type3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Freight Class Code16027000
Image Actual Or RepresentativeA
Recharge Time0.5 hr
SeriesPATRIOT® IN-LINE® Series
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet Height44.075 in
Pallet Weight45.000 lb.

Certifications

Buy American Compliant
No
