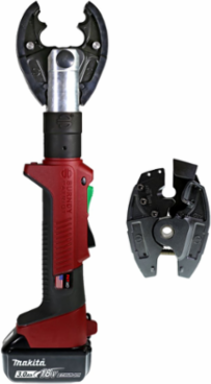

Burndy PATMD16003A1 6-Ton IN-LINE Scissor Action Crimper & Cutter, 19.25 Inch x 4.375 Inch x 2.75 Inch
- MPN: PATMD16003A1
- UPC: 621945545182
- PPN: BUR-PATMD16003A1
- UNSPSC: 27112750
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PATRIOT® IN-LINE® Series, 6-Ton Scissor Action, GUY Cut Jaw, Utility Bag, Makita (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger
Features
- Interchangeable scissor action crimping and cutting jaws available
- 355° Head rotation
- Uses W and X dies
- Safety trigger lock and locking jaw tabs
- LED Worklight
- Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries
Specifications
Additional
- Crimp Force Capacity
- 6 ton
- Power Source
- 120V-AC Charger
- Recharge Time
- 0.5 hr
- Crimping Capacity Copper Flex
- #8 AWG-350 kcmil
- Crimping Capacity ACSR
- #14 sol.-4/0 AWG
- Cutting Capacity Aluminum
- AAC up to 636 kcmil

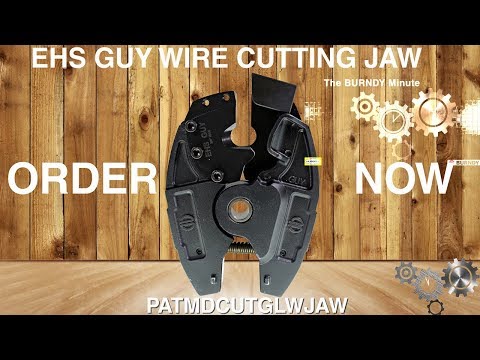

- Cutting Capacity EHS Guy Wire
- up to 3/8 in
- Width
- 4.375 in
- Weight
- 5.55 lb
- Die Type
- W Die and X Die
- Type
- Crimper and Cutter
- Series
- PATRIOT IN-LINE Series
Voltage18 VDC
Battery Type3.0Ah 18V Li-Ion (accepts 2.0Ah-6.0Ah Makita Li batteries)
Crimping Capacity Copper#10 sol.-500 kcmil
Crimping Capacity Aluminum#14 sol.-350 kcmil
Cutting Capacity ACSR26/7 up to 556.5 kcmil
Cutting Capacity CopperSoft Drawn up to 600 kcmil
Length19.25 in
Height2.75 in
Dimensions19.25 in x 4.375 in x 2.75 in
ApplicationCrimping and Cutting
Tool TypeBattery Actuated Scissor Action
Country of OriginUS
