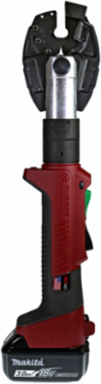

Burndy PATMD60003A1 6-Ton IN-LINE® Battery Actuated Scissor Action Crimper, 3Ah Li-Ion, 4.375 Inch Width
Burndy PATMD60003A1 6-Ton IN-LINE® Battery Actuated Scissor Action Crimper, 3Ah Li-Ion, 4.375 Inch Width
- MPN: PATMD60003A1
- UPC: 621945545168
- PPN: BUR-PATMD60003A1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
PATMD-LW IN-LINE® 6T Scissor Action, GUY Cut Jaw, 3Ah Li-ion, AC, Utility Bag.
Features
- Interchangeable scissor action crimping and cutting jaws available
- 355° Head rotation
- Uses W and X dies
- Safety trigger lock and locking jaw tabs
- LED Worklight
- Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries
Specifications
Specifications
- Application - For Use On
- Interchangeable Jaws: Crimp: ACSR, Aluminum, Copper Code/Flex; Cut: ACSR (26/7), Aluminum (AAC), Copper (Soft Drawn), EHS Guy Wire (sold separately)
- Container Type
- Vinyl Utility Bag
- Crimp Force Capacity
- 6 ton
- Die Type
- W Die and X Die
- Height
- 2.75 in
- Operating Voltage
- 18 VDC
- Product Type
- 6-Ton IN-LINE®
- Warranty
- 5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
- Width
- 4.375 in
- Battery Type
- 3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- Class Code
- B82
- Image Actual Or Representative
- A
- Recharge Time
- 0.5 hr
- Series
- PATRIOT® IN-LINE® Series
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 13.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet Height
- 44.075 in
- Pallet Weight
- 444.000 lb.
ChannelSightWidgetId705
Country of OriginUS
Description - SlangPATMDLW, IN-LINE, scissor action, 6-ton
Dimensions19.25 in x 4.375 in x 2.75 in
Length19.25 in
Power Source120V-AC Charger
Trade NamePATRIOT® IN-LINE®
Weight5.55 lb.
ApplicationCrimping and Cutting
TypeCrimper and Cutter
Freight Class Code16027000
Sub Class CodeB82B82B
Crimping RangesWith Appropriate Jaw: Crimping Capacity: Copper: #10 sol.-500 kcmil, Copper Flex: #8 AWG-350 kcmil, Aluminum: #14 sol.-350 kcmil, ACSR: #14 sol.-4/0 AWG; Cutting Capacity: ACSR (26/7) up to 556.5 kcmil, Aluminum (AAC) up to 636 kcmil, Copper (Soft Drawn) up to 600 kcmil, EHS Guy Wire up to 3/8"
Tool TypeBattery Actuated Scissor Action
BOX SIZE7.665x24.313x10.333 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00621945545168
Pallet - GTIN - Package70621945545167
Pallet Length48.000 in
Pallet Width40.000 in
