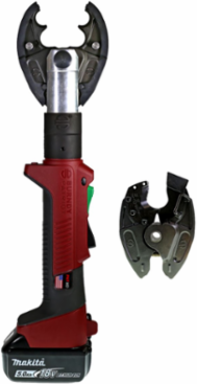

Hubbell PATMD68LW5WCJ 6-Ton IN-LINE® Crimper with 5Ah Li-Ion Battery, 18.73 Inch x 4.375 Inch
Hubbell PATMD68LW5WCJ 6-Ton IN-LINE® Crimper with 5Ah Li-Ion Battery, 18.73 Inch x 4.375 Inch
- MPN: PATMD68LW5WCJ
- UPC: 621945480971
- PPN: BUR-50076350
- UNSPSC: 27112750
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
PATMD-LW IN-LINE® 6T Scissor Action, O/D3 Crimp Jaw, ACSR Cut Jaw, 5Ah Li-ion, AC, Utility Bag.
Features
- Interchangeable scissor action crimping and cutting jaws available
- 355° Head rotation
- Uses W and X dies
- Safety trigger lock and locking jaw tabs
- LED Worklight
- Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries
Specifications
Specifications
- Application - For Use On
- Interchangeable Jaws: Crimp: ACSR, Aluminum, Copper Code/Flex; Cut: ACSR (26/7), Aluminum (AAC), Copper (Soft Drawn), EHS Guy Wire (sold separately)
- Container Type
- Vinyl Utility Bag
- Crimp Force Capacity
- 6 ton
- Die Type
- W Die and X Die
- Each - Width
- 5.5 in
- Length
- 18.73 in
- Power Source
- 120V-AC Charger
- Trade Name
- PATRIOT® IN-LINE®
- Battery
- 5.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- Type
- Crimper and Cutter
- Weight
- 5.55 lb.
- Battery Type
- 5.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- Certification Agency
- Proposition 65
- Description - Invoice
- IN-LINE LW Kit, O/D3, CU/AL/ACSR, 5Ah
- Harmonization Code
- 8467290090
- MSDS Flag
- No
- Stock Indicator
- S - Shelf Stock
- Recharge Time
- 0.75 hr
- Series
- PATRIOT® IN-LINE® Series
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 16.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70621945480970
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ChannelSightWidgetId705
Country of OriginUS
Description - SlangPATMDLW, IN-LINE, scissor action, 6-ton
Dimensions18.73 in x 4.375 in x 2.75 in
Height2.75 in
Operating Voltage18 VDC
Product Type6-Ton IN-LINE®
ApplicationCrimping and Cutting
Size18.73 in x 4.375 in x 2.75 in
Warranty5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
Width4.375 in
ARRA CompliantNo
Class CodeB82
Freight Class Code16027000
Image Actual Or RepresentativeA
Order Multiple1 EA
Sub Class CodeB82B82B
Crimping RangesWith Appropriate Jaw: Crimping Capacity: Copper: #10 sol.-500 kcmil, Copper Flex: #8 AWG-350 kcmil, Aluminum: #14 sol.-350 kcmil, ACSR: #14 sol.-4/0 AWG; Cutting Capacity: ACSR (26/7) up to 556.5 kcmil, Aluminum (AAC) up to 636 kcmil, Copper (Soft Drawn) up to 600 kcmil, EHS Guy Wire up to 3/8"
Tool TypeBattery Actuated Scissor Action
BOX SIZE7.665x24.313x10.333 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00621945480971
Each - Number of Sub Packs1 EA
Lowest Level UOMEach
Pallet Height44.075 in
Pallet Weight531.000 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
