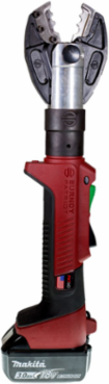

Burndy PATMD70003A1 Patriot IN-LINE 6-Ton Crimper & Cutter, 3Ah Li-Ion, 18V, 19.25 Inch Length
- MPN: PATMD70003A1
- UPC: 621945558618
- PPN: BUR-PATMD70003A1
- UNSPSC: 27112750
CAD
$4840.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PATRIOT® IN-LINE® Series, 6-Ton Scissor Action, XPJ Crimp Jaw, Utility Bag, Makita (2) 3.0Ah 18V Li-Ion Batteries, 120V-AC Charger
Features
- Interchangeable scissor action crimping and cutting jaws available
- 355° Head rotation
- Uses W and X dies
- Safety trigger lock and locking jaw tabs
- LED Worklight
- Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Container Type | Vinyl Utility Bag |
| Description - Slang | PATMDLW, IN-LINE, scissor action, 6-ton |
| Dimensions | 19.25 in x 4.375 in x 2.75 in |
| Length | 19.25 in |
| Power Source | 120V-AC Charger |
| Trade Name | PATRIOT® IN-LINE® |
| Battery | 3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries) |
| Type | Crimper and Cutter |
| Weight | 5.55 lb. |
| Battery Type | 3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries) |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| Recharge Time | 0.5 hr |
| Series | PATRIOT® IN-LINE® Series |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet Height | 44.075 in |
| Pallet Weight | 45.000 lb. |
| NAICS Code | 3339911151 |
| Application - For Use On | Interchangeable Jaws: Crimp: ACSR, Aluminum, Copper Code/Flex; Cut: ACSR (26/7), Aluminum (AAC), Copper (Soft Drawn), EHS Guy Wire (sold separately) |
|---|---|
| Crimp Force Capacity | 6 ton |
| Die Type | W Die and X Die |
| Height | 2.75 in |
| Operating Voltage | 18 VDC |
| Product Type | 6-Ton IN-LINE® |
| Application | Crimping and Cutting |
| Size | 19.25 in x 4.375 in x 2.75 in |
| Warranty | 5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger |
| Width | 4.375 in |
| Class Code | B82 |
| Harmonization Code | 8467290090 |
| Sub Class Code | B82B82B |
| Crimping Ranges | With Appropriate Jaw: Crimping Capacity: Copper: #10 sol.-500 kcmil, Copper Flex: #8 AWG-350 kcmil, Aluminum: #14 sol.-350 kcmil, ACSR: #14 sol.-4/0 AWG; Cutting Capacity: ACSR (26/7) up to 556.5 kcmil, Aluminum (AAC) up to 636 kcmil, Copper (Soft Drawn) up to 600 kcmil, EHS Guy Wire up to 3/8" |
| Tool Type | Battery Actuated Scissor Action |
| BOX SIZE | 7.665x24.313x10.333 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00621945558618 |
| Pallet - GTIN - Package | 70621945558617 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
