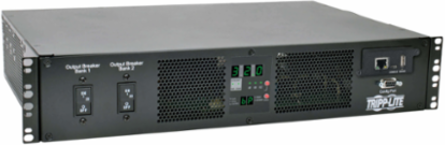

Tripp Lite PDUMH32HVATNET 7.4kW Single-Phase ATS PDU, 2U, 16 C13 & 2 C19 Outputs, 230V
- MPN: PDUMH32HVATNET
- UPC: 037332186874
- PPN: TRP-PDUMH32HVATNET
CAD
$2600.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
7.4kW Single-Phase ATS PDU, 2U, 16 C13 & 2 C19 Outputs, 230V
Features

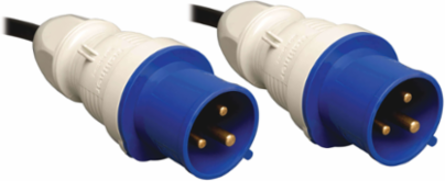

- Single-phase IEC309 230V 32A Blue (2P+E) input
- 16 C13 and 2 C19 230V switched outlets in 2 breakered load banks
- Automatic transfer switching within 1–5 ms
- Ethernet network interface for remote access

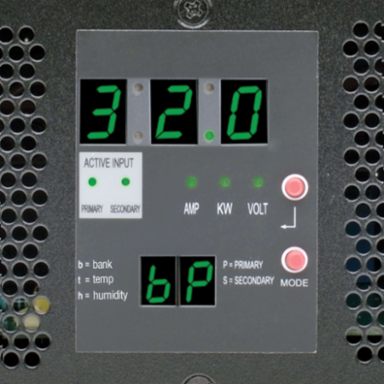

- Digital LED display for real-time status and current monitoring
- 2-year limited warranty
- Primary and Secondary Inputs for Power Redundancy
- Automatic Transfer Switching
- Multifunction Digital LED Display
- Advanced LX Platform Interface
- Broad Communications Compatibility
- Breaker Protected Output Load Banks

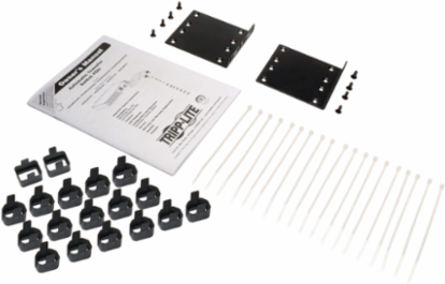

- Cord Retention Sleeves
- Mounts Horizontally in 2U of Rack Space
- TAA-Compliant
Documentation & Downloads
Specifications
Additional
- Output Capacity
- 7.7 kW (240V), 7.4 kW (230V), 7.0 kW (220V), 6.7 kW (208V), 6.4 kW (200V)
- Input Voltage
- 200-240V
- Frequency Compatibility
- 50 / 60 Hz
- Output Maximum Current
- 32A total
- Output Maximum Current per C19
- 16A
- Input Cord Length
- 10 ft (3 m)
- Dimensions (HxWxD)
- 3.5 x 17.5 x 12.5 in (8.8 x 44.4 x 31.7 cm)
- Operating Temperature Range
- 5 to 122 °F (-15 to 50 °C)
- Material
- Metal
Maximum Input Current32A
Input PhaseSingle-Phase
Output Receptacles16 C13, 2 C19
Output Maximum Current per Load Bank16A
Output Maximum Current per C1310A
PDU Form FactorHorizontal (2U) rackmount
Weight13.7 lbs (6.21 kg)
Operating Elevation0 to 10,000 ft (0 to 3000 m)
CertificationsTAA, CE IEC 60950-1, EN Class A, NOM, RoHS
