Tripp Lite PDUMH32HVNET 7.4kW Single-Phase Switched PDU, LX Platform Interface, 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 3.6m Cord, 2U Rack-Mount, TAA
Tripp Lite PDUMH32HVNET 7.4kW Single-Phase Switched PDU, LX Platform Interface, 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 3.6m Cord, 2U Rack-Mount, TAA
- MPN: PDUMH32HVNET
- UPC: 037332157249
- PPN: TRP-PDUMH32HVNET
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1777.41/ EA
Description

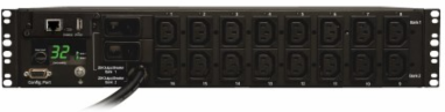

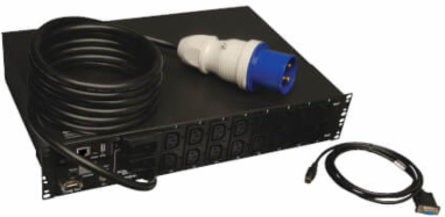

7.4kW Single-Phase Switched PDU, LX Platform Interface, 230V Outlets (16-C13), IEC-309 Blue 230V 32A, 3.6m Cord, 2U Rack-Mount, TAA
Features
- Switched 32A 7.4kW 230V PDU; 2U horizontal rackmount
- LX Platform interface reports voltage, frequency & loading information
- Visual current meter; Reversible housing

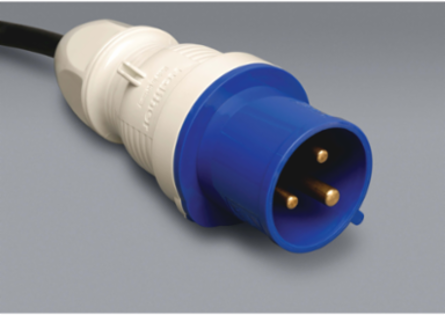

- Blue 230V IEC-309 32A (2P+E) input cable
- 16 C13 switched outlets with plug-lock cable retention inserts
- Temperature, humidity and contact closure options
- TAA Compliant
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
Specifications
Certifications
- Certifications
- Tested to CE (IEC 60950-1), EN Class A (Emissions), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported
- 2U rackmount
- Minimum Required Rack Depth (inches)
- 14.8
- Shipping Dimensions (hwd / in.)
- 7.70 x 16.90 x 19.70
- Unit Dimensions (hwd / in.)
- 3.5 x 17.5 x 12.5
Material of ConstructionMetal
PDU Form FactorHorizontal (2U)
Shipping Weight (lbs.)16.40
Unit Weight (lbs.)13.7
User Interface, Alerts & Controls
- Front Panel LCD Display

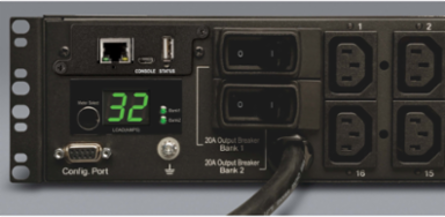

- Digital display reports output amps in 3 loading segments (BANK 1: Outlets #1-8; BANK 2: Outlets #9-16; BANK 3: All outlets combined)
- Switches

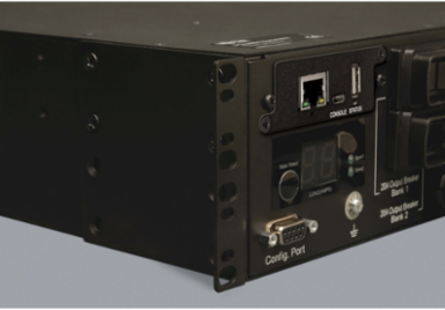

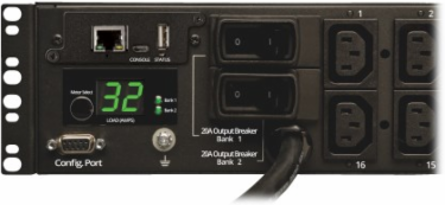

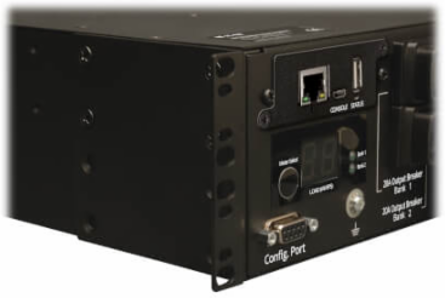

- Pushbutton near the digital current meter advances the display of output current for Bank 1, Bank 2 and Banks 1&2 combined; WEBCARDLX : Recessed reset switch for card reboot and factory reset
Front Panel LEDs16 power availability LEDs confirm power off/on status for each built-in outlet; Two additional LEDs identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1&2 combined); WEBCARDLX: LX Platform Status LED (Green); Network Link/Activity LED (Yellow), Network Speed LED (Green)
Input
- Nominal Input Voltage(s) Supported
- 230V AC
- Recommended Electrical Service
- 32A 230V
- PDU Plug Type

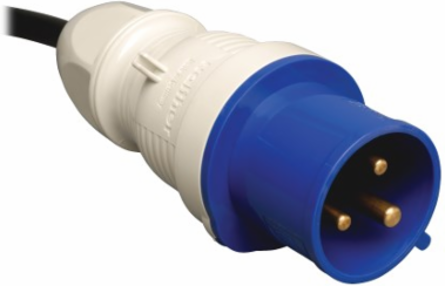

- IEC-309 32A BLUE (2P+E)
- Input Cord Length (ft.)
- 12
PDU Input Voltage230
Maximum Input Amps32
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (16) C13
- Overload Protection
- Two 20A circuit breakers protect 8 outlets each
Output Capacity Details7.4kW (230V) / 32A total capacity / 20A max per breakered outlet bank; 16A max per C19 outlet, 10A max per C13 outlet
Output Nominal Voltage230
Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface
Communications
- SNMP Compatibility
- LX platform interface provides remote monitoring and control via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +50°C (-22°F to +122°F)
Relative HumidityUp to 95% non-condensing
Overview
- UPC Code
- 037332157249
PDU TypeSwitched
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
