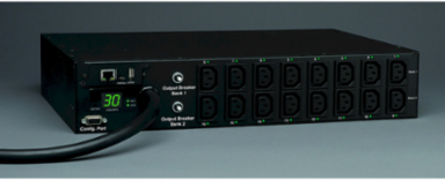

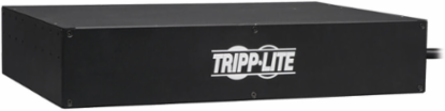

Tripp Lite PDUMH30HVNET 5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (16 C13), L6-30P Input, 12 ft. Cord, 2U Rack-Mount, TAA

5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (16 C13), L6-30P Input, 12 ft. Cord, 2U Rack-Mount, TAA - https://media.province-electric.com/tripplite/2020q1/92a0b4fd85b8a9d32e9dfb731a415428a107096d-medium.png

5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (16 C13), L6-30P Input, 12 ft. Cord, 2U Rack-Mount, TAA

MPN: PDUMH30HVNET
UPC: 037332139320
PPN: TRP-PDUMH30HVNET

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1882.03/ EA

Qty:

Loading add to cart quantity...

Description

5.8kW Single-Phase Switched PDU with LX Platform Interface, 208/240V Outlets (16 C13), L6-30P Input, 12 ft. Cord, 2U Rack-Mount, TAA

Features

Switched 30A 208/240V PDU, 2U horizontal rackmount format
LX Platform Interface reports voltage, frequency & load level
Visual current meter, Reversible housing
NEMA L6-30P input plug with attached 12 ft. / 3.6m line cord
16 switched C13 outlets
Temperature, humidity and contact closure monitoring options
TAA Compliant
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
2-year limited warranty

Specifications

Certifications

Certifications: Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant

Physical

Form Factors Supported: 2U rackmount. Includes mounting accessories sutible for 4 post & 2 post racks installation

Minimum Required Rack Depth (inches): 14.8

Shipping Dimensions (hwd / in.): 7.80 x 16.70 x 19.60

Unit Dimensions (hwd / in.): 3.5 x 17.5 x 12.5

Material of ConstructionMetal

PDU Form FactorHorizontal (2U)

Shipping Weight (lbs.)17.00

Unit Weight (lbs.)13.8

User Interface, Alerts & Controls

Front Panel LCD Display: Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-8; BANK 2: Outlets #9-16; BANK 3: All outlets combined)

Switches: Pushbutton near the digital current meter advances the display of output current for Bank 1, Bank 2 and Banks 1&2 combined; WEBCARDLX : Recessed reset button

Front Panel LEDs16 power availability LEDs confirm power off/on status for each built-in outlet; Two additional LEDs identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1&2 combined); WEBCARDLX: Green LX management card status LED, Yellow Network Link/Activity LED, Green network speed LED

Input

PDU Input Voltage: 200; 208; 240

Maximum Input Amps: 30

PDU Plug Type: NEMA L6-30P

Input Cord Length (ft.): 12

Recommended Electrical Service30A 208/240V

Maximum Input Amps DetailsAgency de-rated to 24A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (16) C13

Overload Protection: Two 15A breakers protect 8 outlets each

Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 15A max per breakered outlet bank; 12A max per C13 outlet

Output Nominal Voltage200; 208; 240

Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface

Communications

SNMP Compatibility: Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, Telnet, SSH, CLI and SNMP management systems
