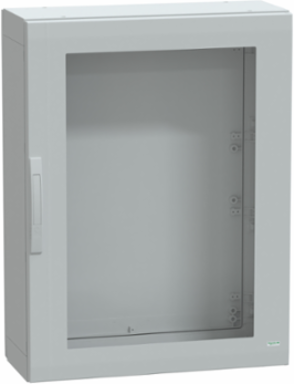

Schneider Electric NSYPLA1073TG Floor Standing Polyester Enclosure 1000x750x320mm IP65 IK08
Schneider Electric NSYPLA1073TG Floor Standing Polyester Enclosure 1000x750x320mm IP65 IK08
- MPN: NSYPLA1073TG
- PPN: SCH-NSYPLA1073TG
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1652.97/ EA
Description
Designed for versatility and robust performance, the floor-standing polyester enclosure from Schneider Electric, known as the PanelSeT PLA, is an ideal solution for a variety of applications. With its dimensions of 1000x750x320mm and a completely sealed design rated at IP65, this enclosure ensures excellent protection against dust and water ingress. The durable material, reinforced with fiberglass, not only enhances its strength but also provides fire resistance up to 960 °C, making it suitable for demanding environments.

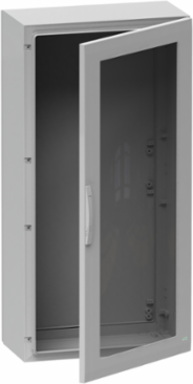

This enclosure features a reversible glazed door that offers easy accessibility for operation from both the front and rear, while the four-point locking mechanism ensures secure closure. Certified to meet UL/cUL and IEC standards, it guarantees reliability and safety for electrical installations. With a striking gray finish (RAL 7035), this enclosure not only meets functional needs but also integrates seamlessly into various settings.
Features
- Suitable for various applications and designed for easy equipment access.
- Highly durable enclosure for robust protection against fire and impacts.
- Resistant to dust and water with complete protection rating of IP65.
- Four-point lock with double-bar insert for additional security.
- Door and rear panel are removable for maintenance purposes.
- Class II electrical insulation to prevent electric shocks.
- Available in grey color (RAL 7035).
- Can operate efficiently in temperatures ranging from -35°C to 90°C.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)

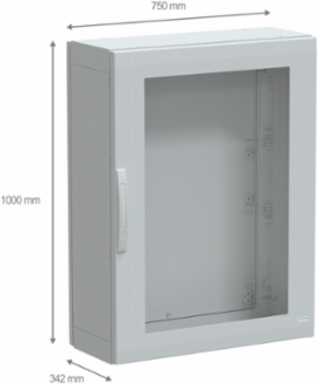

- Enclosure Nominal Width
- 750 mm
Enclosure Nominal Height1000 mm
Conformance Attributes
- Product Certifications
- UL/cUL listed, Veritas, DNV Marine
StandardsUL 508 A, IEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door
- Carbon Footprint Of The Distribution Phase A4
- 58.76555143495683, 59 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 9.971484428982752, 10 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Application
- multi-purpose
- Door Opening Side
- reversible 120 °)
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- 4 points lock, 5 mm double-bar
- Package Weight Lbs
- 29.600 kg
- Product Or Component Type
- suitable enclosure
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 230 kg CO2 eq.
- Stocking Flag
- Y
- Pep Code
- ENVPEP1105005EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Product Name
- PanelSeT PLA
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Removable Partsdoor by hinges, rear panel by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C454 kg CO2 eq., 53.97844538590878
Carbon Footprint Of The Manufacturing Phase A1 To A3108 kg CO2 eq., 107.53243266685227
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Body Typesealed top and bottom part assembled with side parts
Device Short NamePLA
Door Typetransparent front
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Medium DescFloor standing polyester enclosure, PanelSeT PLA, glazed door, completely sealed, 1000x750x320mm, IP65, IK08
Product Kit IdentifierN
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Spain, ES
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- Nema Degree Of Protection
- NEMA 3X, NEMA 3, NEMA 1, NEMA 3S, NEMA 12, NEMA 13, NEMA 3R, NEMA 2, NEMA 5
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -35-90 °C
- IP Degree Of Protection
- IP65 IEC 60529 completely sealed)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Carbon Footprint230.24791391670064
Environmental DisclosureENVPEP1105005EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- suitable enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
