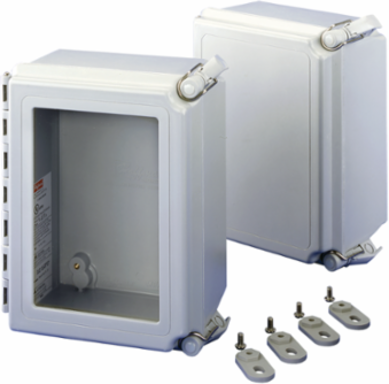

nVent A1086CHSCFG Continuous Hinge Screw-Cover Enclosure 10x8x6 Inch, Fiberglass, NEMA 4X

  • MPN: A1086CHSCFG
  • UPC: 783510296803
  • PPN: HOF-A1086CHSCFG
  • UNSPSC: 39121324

CAD

$190.62

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Engineered for durability and reliable performance, the continuous hinge screw-cover enclosure from nVent Hoffman is crafted from high-quality fiberglass, ensuring exceptional resistance to chemicals, temperature variations, and environmental factors. This enclosure features a gasket that guarantees a tight seal against water and dust, complemented by stainless steel components that enhance its corrosion resistance. With scratch-resistant polycarbonate windows that are permanently bonded, this enclosure not only provides protection but also visibility for internal components. Ease of access is a priority, as demonstrated by the removable hinged cover with a Type 316 stainless steel hinge pin, and quick-release corner latches that facilitate unobstructed entry. Molded-in threaded brass inserts and included polyester mounting brackets mean installation and customization are straightforward, allowing for a wide range of applications in demanding environments. Ideal for those seeking a reliable and robust weatherproof solution, this NEMA 4X-rated enclosure meets stringent protection standards while offering flexibility for modifications and enhancements.

Features

  • Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
  • Fiberglass is easily punched, drilled, filed or sawed
  • Gasket assures water-tight and dust-tight seal
  • Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
  • Removable hinged cover attached to body with Type 316 stainless steel hinge pin
  • Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
  • Hinge pin and bail are corrosion-resistant Type 316 stainless steel
  • Padlock provisions included
  • Material is halogen-free

Documentation & Downloads

Specifications

Additional

Size10.00 x 8.00 x 6.00 in
Depth152 mm
Width203 mm
Overall Dimensions (L x W)267 x 216 mm
FinishSmooth Matte
Seal TypeWater-tight and dust-tight gasket
NEMA RatingType 4X Watertight, corrosion-resistant
ColorLight Gray (RAL 7035)
Window MaterialScratch-resistant polycarbonate
Hinge Pin MaterialType 316 stainless steel
Hinge Bail MaterialCorrosion-resistant Type 316 stainless steel
Enclosure TypeContinuous hinge screw-cover
Padlock ProvisionsIncluded
Weight4.3 lb
Height254 mm
Mounting (G x H)278 x 152 mm
MaterialFiberglass
Cover StyleSolid Screw
IP RatingIP66
Protection RatingNEMA Type 12
BABABABA Compliant
Mounting Brackets MaterialPolyester
Cover Screws MaterialType 316 stainless steel
Threaded Inserts MaterialThreaded brass inserts and plated steel screws
Material CharacteristicHalogen free
Continuous Hinge Screw-Cover Enclosure 10x8x6 Inch, Fiberglass, NEMA 4X
