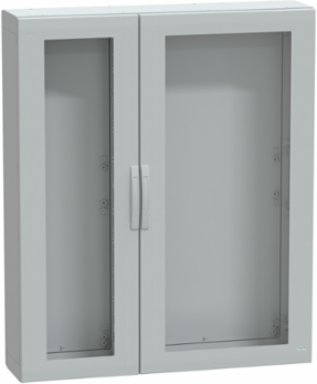

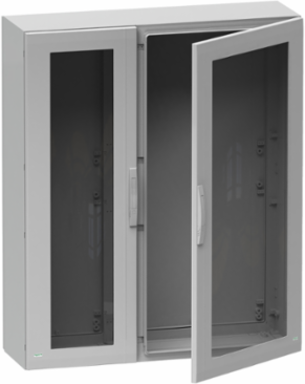

Schneider Electric NSYPLA15123TG Floor Standing Polyester Enclosure, 1500x1250x320mm, IP65, IK08
- MPN: NSYPLA15123TG
- PPN: SCH-NSYPLA15123TG
CAD
$3386.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for durability and versatility, the floor-standing polyester enclosure from Schneider Electric offers a robust solution for various electrical applications. With dimensions of 1500x1250x320mm, this enclosure is completely sealed to an IP65 standard, ensuring protection against dust and water ingress. Its glazed door provides visibility while the IK08 rating guarantees resistance to impact, making it suitable for demanding environments. Crafted from fiberglass-reinforced polyester, this enclosure not only meets stringent safety certifications, including DNV Marine and UL/cUL listings, but also features a dual-door design for easy access from both the front and rear. Ideal for multi-purpose use, it stands out as a reliable choice for both industrial and commercial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Enclosure Nominal Height
- 1500 mm, 1500 mm
- Color
- Gray RAL 7035)
Enclosure Nominal Width1250 mm, 1250 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel
- Removable Parts
- door by hinges, rear panel by fixing element
- Carbon Footprint Of The Distribution Phase [A4]
- 138.9725878529385, 139 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 23.5812131766484, 24 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-09-16
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Body Type
- sealed top and bottom part assembled with side parts
- Device Short Name
- PLA
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- 4 points lock, 5 mm double-bar
- Number Of Doors
- 2
- Product Name
- PanelSeT PLA
- Range
- PanelSeT
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 545 kg CO2 eq.
- Pep Code
- ENVPEP1105005EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door Typetransparent front, transparent
Certificate AgencyDNV Marine, UL/cUL listed, Veritas
Carbon Footprint Of The End-of-life Phase [C1 To C4]128 kg CO2 eq., 127.65172895316266
Carbon Footprint Of The Manufacturing Phase [A1 To A3]254 kg CO2 eq., 254.2996718472858
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door Opening Sideright and left 120 °)
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typesuitable enclosure
ReturnabilityNo
Sustainable PackagingNo
Door Type 1 Door Typetransparent
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %6
Package Weight(Lbs)70.000 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -35-90 °C, -35-90 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 544.5052018300353
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Nema Degree Of ProtectionNEMA 1, NEMA 2, NEMA 12, NEMA 13
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1105005EN
Ip Degree Of ProtectionIP65 IEC 60529 completely sealed)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
