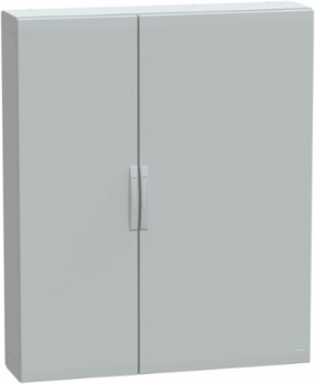

Schneider Electric NSYPLA15123G Floor Standing Polyester Enclosure, 1500x1250x320mm, IP65, IK10
Schneider Electric NSYPLA15123G Floor Standing Polyester Enclosure, 1500x1250x320mm, IP65, IK10
- MPN: NSYPLA15123G
- PPN: SCH-NSYPLA15123G
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2282.72/ EA
Description

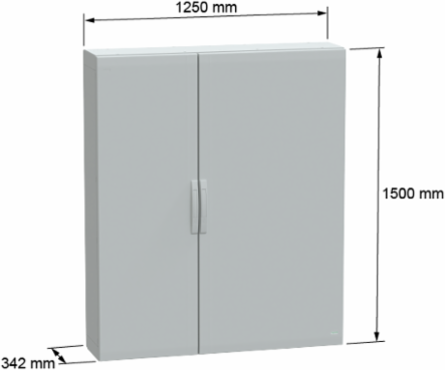

The Floor Standing Polyester Enclosure from Schneider Electric is designed for robust protection and versatility in various environments. With a completely sealed construction rated IP65, this enclosure ensures that your equipment remains safeguarded against dust and water ingress, making it suitable for both indoor and outdoor applications. Measuring 1500mm in height, 1250mm in width, and 320mm in depth, it features a solid front door with a secure four-point lock system, ensuring the safety and accessibility of your components.
Constructed from fiberglass-reinforced polyester, this enclosure is not only durable but also fire-resistant up to 960 °C, making it ideal for demanding conditions. Certified by UL, DNV Marine, and Veritas, it meets stringent industry standards, ensuring reliability in various operational settings. Whether used for electrical distribution or general-purpose applications, the PanelSeT PLA enclosure is a practical choice for professionals seeking quality and performance.
Features
- Multi-purpose floor-standing enclosure designed for easy equipment access.
- Made of durable fiberglass-reinforced polyester for lasting use.

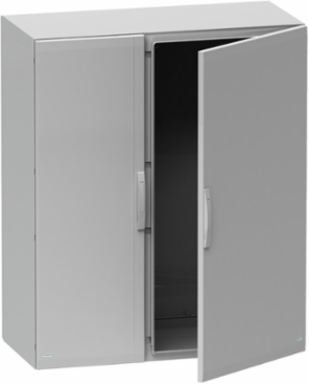

- Doors can be opened up to 120° on both sides with a four-point lock.
- Offers complete protection against dust and water.
- Highly resistant to fire and impacts.
- Class II electrical insulation for shock prevention and insulated solutions.
- Can be stored in temperatures ranging from -35°C to 90°C without performance loss.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 1250 mm
Enclosure Nominal Height1500 mm
Conformance Attributes
- Product Certifications
- Veritas, UL/cUL listed, DNV Marine
StandardsUL 508 A, IEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel
- Carbon Footprint Of The Distribution Phase A4
- 131.8254261919302, 132 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 22.368465070420765, 22 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Application
- multi-purpose
- Door Opening Side
- right and left 120 °)
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- 4 points lock, 5 mm double-bar
- Package Weight Lbs
- 66.400 kg
- Product Or Component Type
- suitable enclosure
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 517 kg CO2 eq.
- Stocking Flag
- Y
- Pep Code
- ENVPEP1105005EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Product Name
- PanelSeT PLA
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Removable Partsdoor by hinges, rear panel by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C4121 kg CO2 eq., 121.08678289271427
Carbon Footprint Of The Manufacturing Phase A1 To A3241 kg CO2 eq., 241.22140300942536
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Body Typesealed top and bottom part assembled with side parts
Device Short NamePLA
Door TypeSolid front
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Medium DescFloor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1500x1250x320mm, IP65, IK10
Product Kit IdentifierN
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Spain, ES
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- Nema Degree Of Protection
- NEMA 12, NEMA 1, NEMA 2, NEMA 13
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -35-90 °C
- IP Degree Of Protection
- IP65 IEC 60529 completely sealed)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Carbon Footprint516.5020771644906
Environmental DisclosureENVPEP1105005EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- suitable enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
