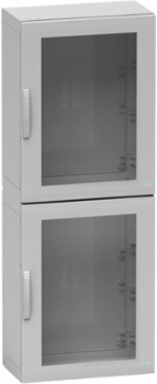

Schneider Electric NSYPLA2074TG PanelSeT PLA Floor Standing Polyester Enclosure, 2000x750x420mm, IP65, IK08
Schneider Electric NSYPLA2074TG PanelSeT PLA Floor Standing Polyester Enclosure, 2000x750x420mm, IP65, IK08
- MPN: NSYPLA2074TG
- PPN: SCH-NSYPLA2074TG
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2843.00/ EA
Description
Designed for durability and versatility, this floor-standing polyester enclosure from Schneider Electric is an ideal solution for protecting electrical components in demanding environments. With a robust construction reinforced with fiberglass, it features a completely sealed design that meets IP65 standards, ensuring reliable performance against dust and water ingress. The enclosure boasts a generous size of 2000x750x420mm, equipped with a transparent front door that allows for easy visibility of the contents, while its dual-door system provides convenient access from both sides. Engineered to withstand extreme temperatures ranging from -35°C to 90°C, and with a fire resistance rating of 960°C, this enclosure is built to endure harsh conditions, making it suitable for various applications in industrial and commercial settings.
Specifications
Physical Attributes
- Enclosure Nominal Height
- 2000 mm, 2000 mm
- Color
- Gray RAL 7035)
Enclosure Nominal Width750 mm, 750 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel
- Removable Parts
- door by hinges, rear panel by fixing element
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 119 kg CO2 eq., 118.53374831365103
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 236 kg CO2 eq., 236.13540957247963
- Certificate Agency
- DNV Marine, UL/cUL listed, Veritas
- Local Publishable Date
- 2025-09-16
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Body Type
- sealed top and bottom part assembled with side parts
- Device Short Name
- PLA
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- 4 points lock, 5 mm double-bar
- Number Of Doors
- 2
- Product Name
- PanelSeT PLA
- Range
- PanelSeT
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 506 kg CO2 eq.
- Door Type 1 Door Type
- transparent
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional Unit Unit
- Unit
- Energy Model Manufacturing A1 A3 2
- Spain, ES
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In 2
- 6
- Pn
- 1
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door Typetransparent front, transparent
Carbon Footprint Of The Distribution Phase A4129.04597443487143, 129 kg CO2 eq.
Carbon Footprint Of The Installation Phase A521.8968408068878, 22 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door Opening Sideright and left 120 °)
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typesuitable enclosure
ReturnabilityNo
Sustainable PackagingNo
Warranty In Months18
Pep CodeENVPEP1105005EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Quantity1
Reference Lifetime In Y220
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Offer Owner Code190789
Environment Attributes Main
- Nema Degree Of Protection
- NEMA 12, NEMA 1, NEMA 2, NEMA 13
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -35-90 °C
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint505.6119731278899
Environmental DisclosureENVPEP1105005EN
Ip Degree Of ProtectionIP65 IEC 60529 completely sealed)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Spain
