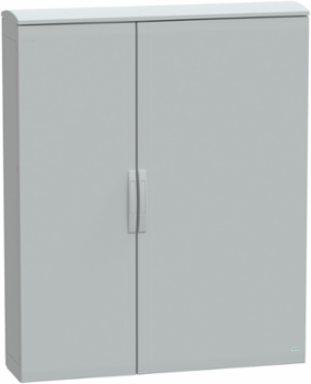

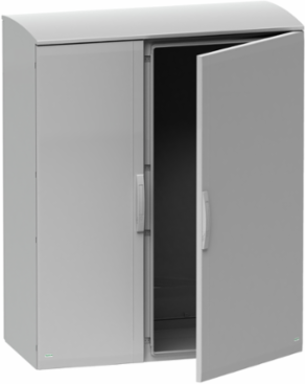

Schneider Electric NSYPLAT15123G Floor Standing Polyester Enclosure, 1500x1250x320mm, IP44, IK10

MPN: NSYPLAT15123G
PPN: SCH-NSYPLAT15123G
UNSPSC: 39121324

$3238.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Floor Standing Polyester Enclosure from Schneider Electric, known as the PanelSeT PLA, is engineered to provide robust protection and versatility for various applications. With dimensions of 1500x1250x320mm, this enclosure features a solid front door and a ventilated canopy, ensuring optimal airflow while maintaining an IP44 rating against dust and water ingress. Constructed from polyester reinforced with fiberglass, it boasts a fire resistance of up to 960 C and an IK10 impact rating, making it suitable for demanding environments. Designed for floor-standing installation, it offers easy accessibility from the front, rear, and top, with a dual-door configuration that allows for convenient operation and maintenance.

Features

Multi-purpose floor standing enclosure for various applications
Polyester fiberglass construction for durability and resistance to hazards
Robust protection against fire, impact, dust and water
Class II electrical insulation for safe operation
Ventilated canopy for enhanced airflow

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	73000 g

Physical Attributes

Enclosure Nominal Height	1500 mm, 1500 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	1250 mm, 1250 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 top part, 1 bottom part2 side part, 2 door, 2 rear panel, 1 canopy
Removable Parts	door by hingesrear panel by fixing element, canopy by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C4	133 kg CO2 eq., 133.1225173368696
Carbon Footprint Of The Manufacturing Phase A1 To A3	265 kg CO2 eq., 265.19822921216945
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Opening Side	right and left 120 °)
Enclosure Mounting	floor-standing
Fire Resistance	960 °C IEC 62208
Material	polyester reinforced with fibreglass
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Returnability	No
Sustainable Packaging	No
Door Type 1 Door Type	Solid
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Door Type	front, Solid
Carbon Footprint Of The Distribution Phase A4	144.9285559037787, 145 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	24.591836598504756, 25 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-12-09
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	open top and sealed bottom part assembled with side parts
Device Short Name	PLAT
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	4 points lock, handle with 5 mm double bar insert
Number Of Doors	2
Product Name	PanelSeT PLA
Range	PanelSeT
Software Version	v6.1
Total Lifecycle Carbon Footprint	568 kg CO2 eq.
Database Version	2023-02
Certificate Agency	Veritas
Customs Code	9403704031
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	6

Environment Attributes Main

Ambient Air Temperature For Storage	-35-90 °C, -35-90 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1105005EN
Ip Degree Of Protection	IP44 IEC 60529 with ventilated canopy)
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	567.8411390513224
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
