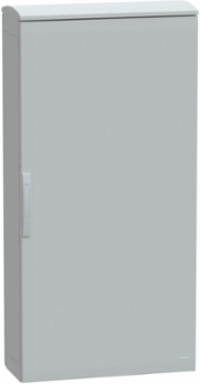

Schneider Electric NSYPLAT1573G Floor Standing Polyester Enclosure, 1500x750x320mm, IP44, IK10
- MPN: NSYPLAT1573G
- PPN: SCH-NSYPLAT1573G
CAD
$1888.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

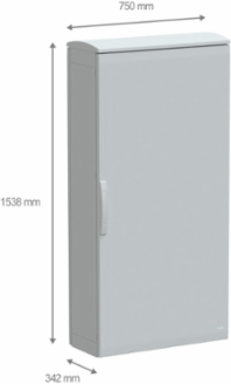

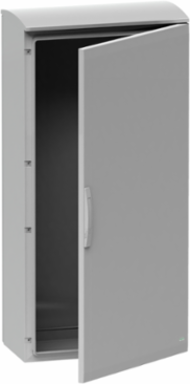

Designed for durability and versatility, this floor-standing polyester enclosure from Schneider Electric is an ideal solution for various applications. Constructed from fiberglass-reinforced polyester, it boasts a robust design with an IP44 rating for protection against dust and water, and IK10 rating for impact resistance, ensuring reliable performance in challenging environments. With dimensions of 1500x750x320mm, the enclosure features a solid front door that can be opened from either side, facilitating easy access to the interior, while its ventilated canopy promotes airflow to protect sensitive equipment. This enclosure meets the IEC 62208 standards and is suitable for a wide range of electrical installations, making it a dependable choice for both industrial and commercial settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Enclosure Nominal Height
- 1500 mm, 1500 mm
- Color
- Gray RAL 7035)
Enclosure Nominal Width750 mm, 750 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part2 side part, 1 rear panel, 1 door, 1 canopy
- Removable Parts
- door by hingesrear panel by fixing element, canopy by fixing element
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 78 kg CO2 eq., 78.4146334997999
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 156 kg CO2 eq., 156.21265556333267
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Door Opening Side
- reversible 120 °)
- Enclosure Mounting
- floor-standing
- Fire Resistance
- 960 °C IEC 62208
- Material
- polyester reinforced with fibreglass
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- suitable enclosure
- Returnability
- No
- Sustainable Packaging
- No
- Door Type 1 Door Type
- Solid
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Spain, ES
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 6
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9403704031
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door Typefront, Solid
Carbon Footprint Of The Distribution Phase [A4]85.36887539537648, 85 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]14.485602379941158, 14 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-12-09
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typeopen top and sealed bottom part assembled with side parts
Device Short NamePLAT
Electrical Insulation Classclass II
Energy Efficiency OptimizedFalse
Lock Type4 points lock, handle with 5 mm double bar insert
Number Of Doors1
Product NamePanelSeT PLA
RangePanelSeT
Software Versionv6.1
Total Lifecycle Carbon Footprint334 kg CO2 eq.
Pep CodeENVPEP1105005EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate AgencyVeritas
Package Weight(Lbs)42.000 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -35-90 °C, -35-90 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1105005EN
- Ip Degree Of Protection
- IP44 IEC 60529 with ventilated canopy)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
China Rohs RegulationX
Carbon Footprint334.4817668384502
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
