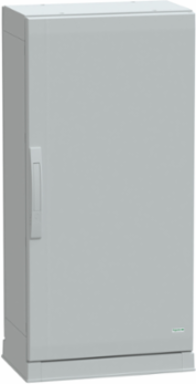

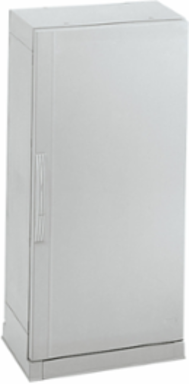

Schneider Electric NSYPLAZ1053G Floor Standing Polyester Enclosure 1000x500x320mm IP54 IK10
Schneider Electric NSYPLAZ1053G Floor Standing Polyester Enclosure 1000x500x320mm IP54 IK10
- MPN: NSYPLAZ1053G
- PPN: SCH-NSYPLAZ1053G
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1374.55/ EA
Description

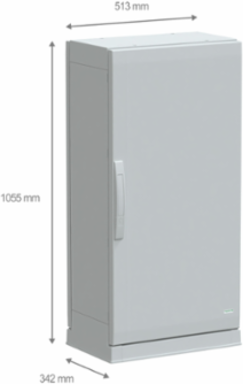

Designed for versatility and durability, the floor-standing polyester enclosure from Schneider Electric is an ideal solution for a variety of applications. With dimensions of 1000mm in height, 500mm in width, and 320mm in depth, this enclosure is crafted from fiberglass-reinforced polyester, ensuring robust protection against environmental factors. Rated at IP54 for ingress protection and IK10 for impact resistance, it is well-suited for demanding conditions, making it a reliable choice for electrical installations. The solid front door is reversible for ease of access, while the open bottom design allows for flexible mounting options, ensuring that this enclosure meets the diverse needs of any project.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 500 mm
Enclosure Nominal Height1000 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 plinth
- Carbon Footprint Of The Distribution Phase A4
- 49.63306709033517, 50 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 8.421861848803, 8 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option Id
- STANDARD
- Device Short Name
- PLAZ
- Door Type
- Solid front
- Energy Efficiency Optimized
- False
- Lock Type
- 4 points lock, handle with 5 mm double bar insert
- Package Weight Lbs
- 25.000 kg
- Product Or Component Type
- suitable enclosure
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 194 kg CO2 eq.
- Pep Code
- ENVPEP1105005EN
- PCR Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Unit
- Unit
- Product Manager
- JULIA DESLCAZO
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial

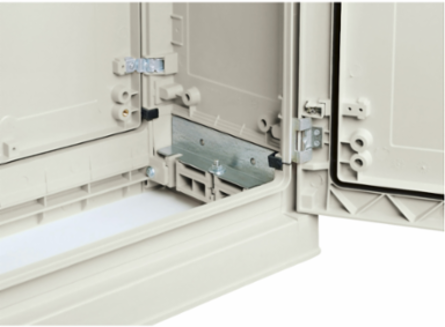

Removable Partsdoor by hinges, rear panel by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C446 kg CO2 eq., 45.58990319755809
Carbon Footprint Of The Manufacturing Phase A1 To A391 kg CO2 eq., 90.82131137403063
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard

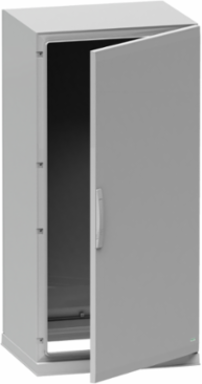

Door Opening Sidereversible 120 °)
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Relationship TypeCompatible relationship
Pep Verification Date2024-10-01
PSR VersionPSR-0005-ed3.1-EN-2023 12 08
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Product Kit IdentifierN
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Carbon Footprint
- 194.46614351072685
- IP Degree Of Protection
- IP54 IEC 60529 plinth type open bottom)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
- PCR Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1105005EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-10-01
PSR VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- suitable enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
