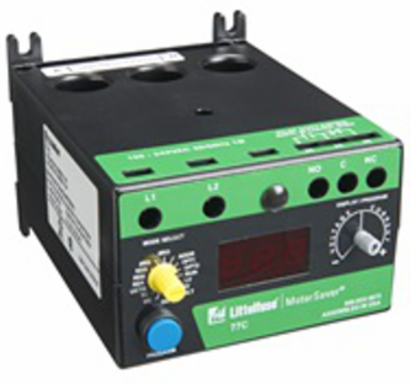

Littelfuse 777-HVR-SP 777-HVR-SP - 777/77C Series
- MPN: 777-HVR-SP
- UPC: 079458990980
- PPN: LTF-777-HVR-SP
CAD
$1293.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
All of the overload relays provide unsurpassed protection by combining overload, underload, and voltage in one package. For standalone applications, the units incorporate a 3-digit LED display that is used for programming, providing real-time operational information and displaying diagnostic codes to aid in troubleshooting a fault condition. The units also feature a communications port that can be used with communication modules listed in the 777 accessories section to form a Modbus, DeviceNet™, Profibus, or Ethernet network. Up to 99 units can be remotely monitored and controlled from a PC, PLC, or SCADA system, and data logging through a PC with the optional Solutions software. This capability allows for a simple, cost-effective way to meet new requirements for arc-flash safety.
Specifications
Key Specifications
- Input Voltage (V)
- 340 to 480VAC
- Input AC Line Frequency (Hz)
- 50/60Hz
- Output Load Rating (VA)
- Pilot Duty: 470VA @ 600VAC B600; General Purpose: 10A @ 240VAC
- Timing Accuracy (%)
- ±0.5s
- Restart Delay Range
- All faults except undercurrent: 2 - 500m/s; Undercurrent: 2 - 500m/s A (Automatic); # of Restarts: 0 1 2 3 4 A (Automatic)
- Undervoltage Trip Voltage
- 340 - HV setting
- Overcurrent Trip Point
- (20A - 100A) … MULT of 80 - 120% of CT primary
- Undercurrent Trip Point
- (0 10 - 98 Amps) … MULT or 40 - 100% of CT primary
- Current Accuracy (%)
- ±3% (<100 amps direct)
- Sensor Hole Size
- Max conductor size: 0.65 in (with insulation)
- Surge Protection
- IEC: 61000-4-5 Level 3 2kV line-to-line; Level 4 4kV line-to-ground
- Pollution Degree
- 3
- Address
- A01 - A99
- Termination Type
- Torque: 7in-lbs
- Operating Temperature
- -20° to 70°C (-4° to 158°F)
- Humidity
- 10-95% non-condensing per IEC 68-2-3
- Weight (lbs/g)
- 1.56 lbs. (25.0 oz. 707.6 g)
Maximum Input Power10W
Output FormSPDT - Form C
Full Load Amp Range (A)2 - 25A (looped conductors required); 26 - 90A (direct); 80 - 800A (external CTs required)
Rapid Cycle Timer (s)0 2 - 500s
Repeat Accuracy (%)Voltage: ±0.5% of nominal voltage; Current: ±1% (<100 amps direct)
Voltage Accuracy (%)±1%
Overcurrent Trip Class5 J5 10 J10 15 J15 20 J20 30 J30 or lin (linear)
Undercurrent Trip Delay (s)2 - 60s
Ground Fault Accuracy (%)±15%
Short Circuit (kA)100kA
Protection ClassIP20
CT Ratio1 - 10 100 150 200 300 400 500 600 700 800
LifeElectrical: 1 x 105 operations at rated load; Mechanical: 1 x 106
Mounting MethodSurface mount (4 - #8 screws) on DIN rail mount
Storage Temperature (F/C)-40° to 80°C (-40° to 176°F)
Dimensions3.05 H x 3.85 W x 5.05 D in. (77.5 x 97.8 x 128.3 mm)
