Thomas & Betts SH724MV 7TAA080240R0090
- MPN: SH724MV
- UPC: 786209987150
- PPN: T-B-SH724MV
CAD
$115.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

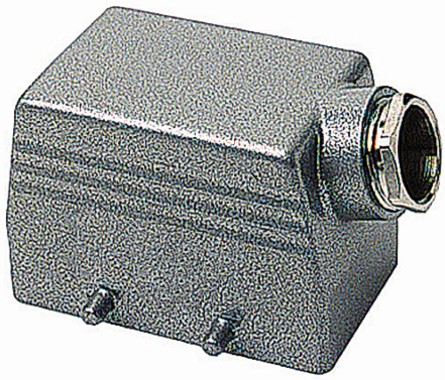

Side entry single post hood, NPT entry-1 Inch x 1 Inch
Specifications
European Specifications (ETIM)
| ETIM | EC000437 Housing for industrial connectors |
|---|---|
| Length | 119.9896mm |
| Width | 43.0022mm |
| Position cable feed | Sideways |
| With hinged lid | N |
| Coating housing | With powder coating |
| Operation temperature | -40 - +125°C |
| Shape | Rectangular |
|---|---|
| Height | 75.9968mm |
| Type of housing | Other |
| With cable screw gland | N |
| Material housing | Aluminium |
| Inflammability class of insulation material acc. with UL94 | V0 |
North American Specifications (UNSPSC)
| UNSPSC | 39121424 Terminal block covers |
|---|---|
| Brand Name | Pos-E-Kon |
| Material | Die-Cast Aluminum Alloy |
| Voltage Rating | 600 VAC |
| IGCC | 4594 Terminal block covers |
|---|---|
| Standard | UL e215386, CSA 70013 |
| Finish | Epoxy Powder Coated |
| Temperature Rating | -40 Degrees F to +257 Degrees F |
Packaging
| Outer Quantity | 5 |
|---|---|
| Weight Uom | 75 lbs. per 100 |
| Outer Dimensions (inches) | 4.7x6.7x9.4 |
|---|
