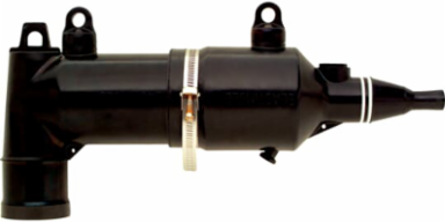

Thomas & Betts 168FLR1B5250-S 8.3KV FUSE ELBOW W-SEALING KIT
- MPN: 168FLR1B5250-S
- UPC: 075114352536
- PPN: T-B-168FLR1B5250-S
- UNSPSC: 39121421
CAD
$2476.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8.3kV, 200 Amp, LoadBreak, Fused Elbow (Full Range Current Limiting). Small Housing. Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Connector, Conductor size 2/0 AWG Stranded/Compressed, 3/0 AWG Solid/Compact. With Jacket Seal
Specifications
Additional Information
| Application | Protect Light Duty Underground Distribution Systems |
|---|---|
| Color | Black |
| Effective Date | 20171003 |
| Material | EPDM Rubber |
| Product Type | Loadbreak Fused Elbow Connector |
| Special Functions | Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 15kV Loadbreak Elbow Switching. Cold-Shrinkable Jacket Seal. |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 200 A |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Length 16.87 inches from bottom to center of Bushing |
| Standards | IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47 |
| Voltage Rating | 8.3 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
