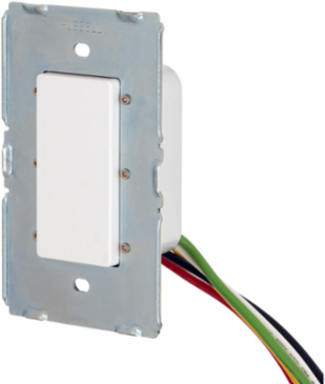

Hubbell Wiring Device-Kellems WSS1277 Proximity Tap Switch, 10 Amp 120/8 Amp 277 Volt, 1 Gang, 3R Wet Rated
- MPN: WSS1277
- UPC: 783585723471
- PPN: HBL-WSS1277
- UNSPSC: 39122236
CAD
$103.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Proximity Tap Switch , 1 Gang, 3R Wet rated designed to get sanitized and wet, Single Pole and Three way, 8A 10A 120/277V Module Only, add cover plate
Features
- Designed to be sanitized with cleaning solutions
- 3R UL Rated - able to get wet
- Impact & Chemical Resistant
- 10 Amp 120, 8 Amp 277 Volt, SP and 3-Way Capable
- Device only, add cover plate
- Able to be disinfected & sanitized
Specifications
Key Specifications
| Country of Origin | Taiwan |
|---|---|
| Width | 3.100 in |
| Size | 4 3/4 x 3 inches |
| Color | White |
| Indicator | na |
| Operating Cycles | 50K |
| Special Features | Able to be disinfected & sanitized |
| Type | Tap |
| General Literature Asset 1 Display Text | ScrubSwitch™ Sealed Switches |
| General Literature Asset 3 Display Text | ScrubSwitch™ Order Guide |
| Actuator | Tap Switch |
| Connection | Wire leads |
| Contact Rating | 8 A |
| Mounting Type | Standard Box Mount |
| Style | General Purpose |
| Class Code | A48 |
| Harmonization Code | 3925900000 |
| Sub Class Code | A48A450 |
| Series | Heavy Duty |
| BOX SIZE | 3.300x11.900x10.900 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585723471 |
| Case Weight | 19.499 lb. |
| Current / Amperage Rating | 10 A;8 A |
|---|---|
| Industry Standard(s) | Heavy Duty Switches and Controls |
| Application | Hospitals, Medical Areas, locations needing constant cleaning |
| Environmental Conditions | indoor |
| Mounting | Standard Box Mount |
| Operating Temperature | 0-60 degree c |
| Standard | Heavy Duty Switches and Controls |
| Voltage Rating | 120/277 V |
| General Literature Asset 2 Display Text | ScrubSwitch™ Sealed Switches FAQ |
| Action | Relay Contact |
| Amperage Rating | 8 A |
| Contact Configuration | Relay |
| Insulation | na |
| Number Of Poles | 3 |
| Wattage | 960 W |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material | Plastic, Steel with Electronics |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| NAICS Code | 3359315102 |
