Tripp Lite NGIS08C2POE8 8-Port Lite Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, -10° to 60°C, DIN Mount, TAA
- MPN: NGIS08C2POE8
- UPC: 037332266996
- PPN: TRP-NGI-S08C2POE8
CAD
$1281.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

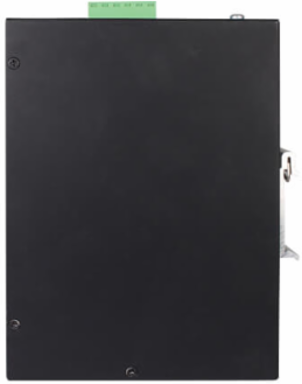

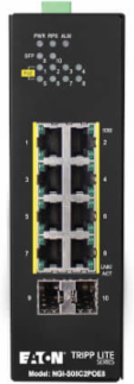

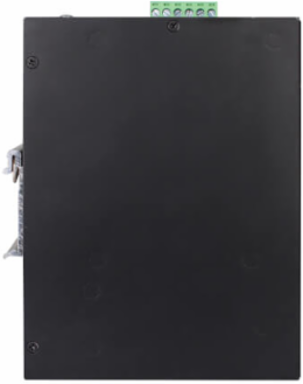

8-Port Lite Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, -10° to 60°C, DIN Mount, TAA
Features
- NGI-S08C2POE8 8-Port Lite Managed Industrial Gigabit Ethernet Switch

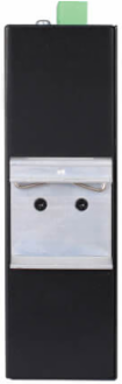

- DIN rail-mounting clip (pre-installed)
Documentation & Downloads
Specifications
Performance
| Network Compatibility | 1 Gbps (Gigabit), Auto-negotiable |
|---|---|
| Voltage Compatibility | 24-57 V |
| Power Consumption | 13.00 W (System 13W / PoE Power budget 120W@24VDC, 240W@48VDC) |
| PoE Port Description | 30W maximum per port |
| Maximum Input Amps Details | 6A |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| Operating Elevation | 0-6562 ft (0-2000 m) |
| Jumbo Frames | 10000 |
| Switching Capacity | 20 Gbps (1 Gbps per port, Full Duplex) |
|---|---|
| Redundancy - Dual Power Inputs | Yes |
| PoE Power Budget | 240 W |
| PoE Type | Type 2 PoE+ (30W, IEEE 802.3at) |
| Operating Temperature Range | -14° to 140°F (-25° to 60°C) |
| Relative Humidity | 5 to 95% (non-condensing) |
| ESD Protection | ±8kV air discharge / ±4kV contact discharge |
Dimensions
| Number of Ports | 8 |
|---|---|
| SFP Uplink Ports Detail | 2x 100Base-FX/1000Base-X |
| Form Factors Supported | DIN-Rail Mountable |
| Unit Weight | 1.9 lb |
| LED Indicators | PWR (Green): Power; RPS (Green): Redundant Power; ALM (Red): Primary Power or Low I/P voltage; PoE (Green): supplying power to PD device; 1000 (Green): Ethernet speed 1000Mbps; LNK/ACT (Green): data transmitting/receiving; SFP (Green): data transmitting/receiving |
| Network Switch Ports | (8) 10/100/1000 (RJ45) |
|---|---|

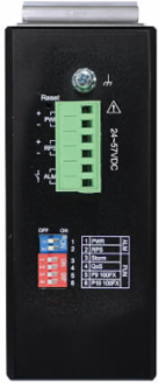

| Power Source | 6-Pin Terminal Block |
| Unit Dimensions | 6.300 x 1.970 x 4.720 in |
| MAC Addresses | 8000 |
Reference
| Product Type | Smart Hardened Gigabit PoE Ethernet Switch |
|---|
| Product Warranty Period | 3-year limited warranty |
|---|
Material
| Primary Form Factor | DIN-Rail |
|---|---|
| Material of Construction | Metal Housing |
| Color | Black |
|---|---|
| Fans | Fanless |
