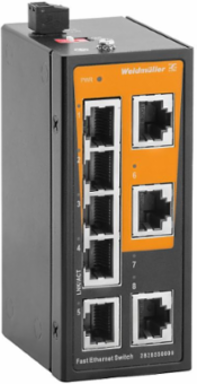

Weidmuller 2828550000 IE-SW-ELB-08-8TX
- MPN: 2828550000
- PPN: WDM-2828550000
CAD
$260.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
IE-SW-ELB-08-8TX
Documentation & Downloads
Specifications
Additional
| Number of Ports | 8 RJ45 |
|---|---|
| Supply Voltage | 9.6 to 60 V DC, 18 to 36 V AC |
| Bandwidth Backplane | 1.6 Gbit/s |
| Switch Type | Unmanaged |
| Mounting Type | DIN rail |
| Humidity Range | 5 to 95% non-condensing |
| MAC Table Size | 1 K entries |
| Flow Control | IEEE 802.3x |
| Overload Current Protection | Yes |
| Operating Altitude | Max 2000 m |
| Network Features | Broadcast Storm Protection, Quality of Service (QoS), Class of Service (CoS), PROFINET Conformance Class A |
| Dimensions | 103 mm x 43.5 mm x 64 mm (H x W x D) |
| Warranty | 5 years |
| Compliance | RoHS Exemptions 6c, 7a, 7cI; UL 61010-1; UL 61010-2-201; CE; UKCA; KC; cULus E141197 |
| RJ45 Port Type | 10/100BaseT(X), auto negotiation, Full/half-duplex, Auto MDI/MDI-X |
|---|---|
| Operating Temperature Range | -10 C to 60 C |
| Speed | Fast Ethernet |
| Current Consumption | 0.13 A at 24 V |
| Storage Temperature Range | -40 C to 85 C |
| Packet Buffer Size | 448 kBit |
| Data Switching | Store and Forward |
| Priority Queues | 2 |
| Reverse Polarity Protection | Yes |
| Protection Degree | IP40 |
| MTBF | 463,836 hours |
| Weight | 195 g |
| Material | Metal |
