Killark

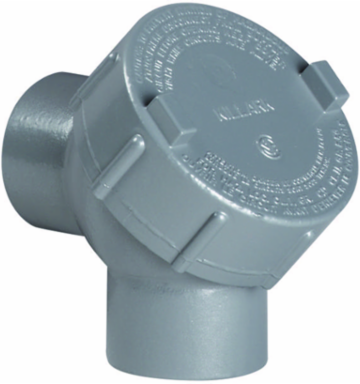

Killark Y-3M 90° 1 Inch Iron Capped Elbow, Threaded for Rigid Conduit, 1.77 lb

90° 1 Inch Iron Capped Elbow, Threaded for Rigid Conduit, 1.77 lb
  • MPN: Y-3M
  • UPC: 783936970127
  • PPN: HBL-Y-3M
  • UNSPSC: 39121331

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$113.95/ EA

Description

90° 1" Iron, Capped Elbow

Features

  • Threaded for rigid conduit or IMC
  • Smooth integral bushings to prevent damage to wires
  • Threaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.

Specifications

Certifications

EU RoHS Indicator
Contact Manufacturer

Specifications

Country of Origin
Mexico
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size
1"
Application
To change direction 90° in rigid or IMC conduit systems where space is limited and access is needed for pulling conductors or maintenance.
Size
4 in x 3 in x 4 in
Type
Capped Elbow
Width
3 in
Finish Type
Powder Epoxy Paint
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
Yes
CSA File Number
LR11716
UL File Number
E10514
Series
Y Series
BOX SIZE
4.250x7.750x6.000 (in)
Carton - Number of Sub Packs
2
Carton - SCC-14 Next Lower Level Sub Pack
00783936970127
Master Pack Description
Each
Dimensions4 in x 3 in x 4 in
Height4 in
Length4 in
ColorGray
Special FeaturesThreaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.
Weight1.77 lb.
Cover TypeThreaded
ARRA CompliantContact Manufacturer
Description - InvoiceCAP ELBOW 1" FE
Harmonization Code7307193060
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging1.77
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.540 lb.
Carton - Pack DescriptionCarton
Carton - Total Units2 EA
