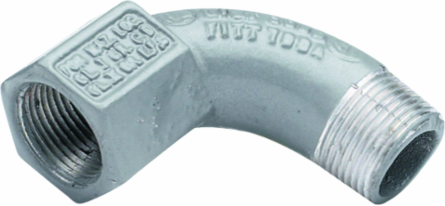

Killark BL-90-1 90 Degree 1/2 Inch Aluminum Elbow, Male/Female, Grit 0.11 lb.
- MPN: BL-90-1
- UPC: 783936030012
- PPN: HBL-BL-90-1
- UNSPSC: 39131708
CAD
$29.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
90° 1/2" Aluminum Elbow, Male/Female
Features
- Threaded for rigid conduit or IMC
- Smooth integral bushings to prevent damage to wires
- Threaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Height
- 2 in
- Length
- 3 in
- Type
- 90º Elbow
- Weight
- 0.11 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- BL Series
- BOX SIZE
- 3.750x9.750x6.125 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936030012
- Master Pack Description
- Each
Dimensions3 in x 2 in x 2 in
ApplicationTo change direction in rigid or IMC conduit systems.
FinishPowder Epoxy Paint
Hub Size1/2"
Special FeaturesThreaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.
Width2 in
Engineering Drawing 1 Display TextBL-90-1 Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceELBOW, MALE/FEM 90 DEG AL 1/2"
Harmonization Code7609000000
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.11
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.550 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359323110
