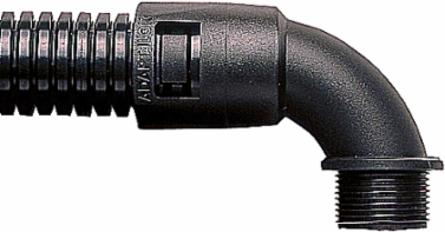

Adaptaflex AL34/M32/C90/BL 90 Degree Panel Mounting Flange, 34mm Nominal Diameter, M32 Thread, IP66
- MPN: AL34/M32/C90/BL
- UPC: 786210280554
- PPN: T-B-AL34/M32/C90/BL
CAD
$18.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
90 Degree Conduit Fitting, Panel Mount Flange, Fixed External Male Thread, Nominal Conduit Size 34mm, M32 Thread, Polyamide (Nylon) 66, Black
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP66 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | M32 x 1.5 |
| Material | Polyamide |
| Approved in combination with protective conduit UR | Y |
| Nominal diameter | 34mm |
|---|---|
| Model | 90°-elbow |
| Construction type | External thread |
| Thread type | Metric |
| Thread length | 16mm |
| Colour | Black |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | 90 Degree |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Panel Mounting Flange |
| Size | NC 34mm |
| Color | Black |
| Cable Entry | M32 Thread |
Packaging
| Inner Quantity | 10 |
|---|---|
| Outer Quantity | 50 |
| Weight Uom | 0.1 lbs. Each |
| Inner Dimensions (inches) | .45x1.8x1.6 |
|---|---|
| Outer Dimensions (inches) | 14x14x6 |
