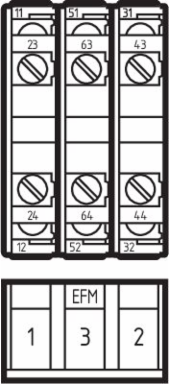

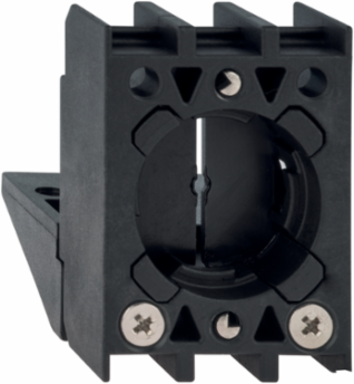

Schmersal 101171324 Mounting Flange for Position Switches, 42 mm Depth, 29 mm Width, Black
- MPN: 101171324
- PPN: SCM-101171324
CAD
$22.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mounting Flange for Position Switches, 42 mm Depth, 29 mm Width, Black
Specifications
Key Specifications
| Width | 29 mm |
|---|---|
| Depth | 42 mm |
| Height | 17 mm |
|---|
Mechanical data - Dimensions
| Width | 29 mm |
|---|---|
| Depth | 42 mm |
| Thickness of the front panel, maximum | 6 mm |
| Height | 17 mm |
|---|---|
| Thickness, of the front panel, minimum | 1.5 mm |
| Spacing | 50 x 50 mm |
General data
| Versions | Mounting flange |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Material of the fixing screws | Stainless steel (V4A) |
| Colour of the fixing screws | Silver |
| Design | Mounting flange for position switches |
|---|---|
| Enclosure material | PA |
| Colour of the mounting flange | Black |
| Gross weight | 2 g |
Ambient conditions
| Ambient temperature | -25 ... +80 °C |
|---|
Mechanical data
| Tightening torque of the screw | 0.6 Nm |
|---|
