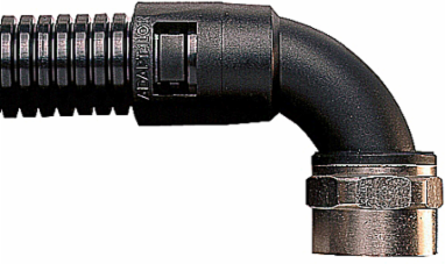

Adaptaflex AL13/M16/CSF90/BL 90 Degree Conduit Fitting, 13mm, M16 Thread, Polyamide, IP66
- MPN: AL13/M16/CSF90/BL
- UPC: 786210278858
- PPN: T-B-AL13/M16/CSF90/BL
CAD
$35.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
90 Degree Conduit Fitting, Swivel Internal Female Thread, 13mm Nominal Conduit Size, M16 Metric Thread, Polyamide (Nylon) 66, Black
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- Y
- Type of connection
- Snap connection
- Thread connection size
- M16 x 1.5
- Material
- Polyamide
- Approved in combination with protective conduit DIN EN 61386-23
- Y
Nominal diameter13mm
Model90°-elbow
Construction typeInternal thread
Thread typeMetric
Thread length14mm
ColourBlack
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 90 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
SizeNC 13mm
ColorBlack
Cable EntryM16 Thread
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.08 lbs. Each
Outer Dimensions (inches)1x1x1
