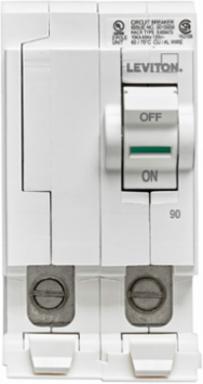

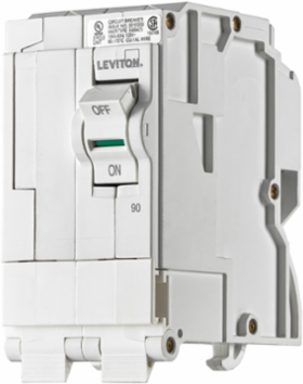

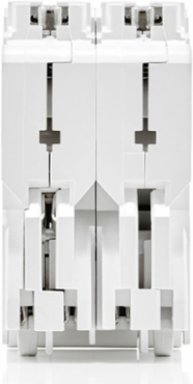

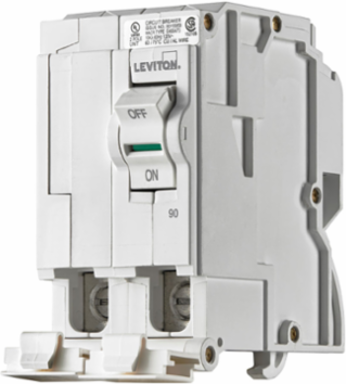

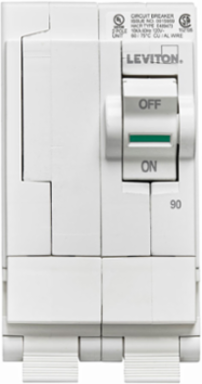

Leviton LB290 90A 2-Pole Hydraulic Magnetic Circuit Breaker 120/208V & 120/240V
- MPN: LB290
- UPC: 078477814512
- PPN: LEV-LB290
CAD
$94.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
90A 2-Pole Standard Branch Circuit Breaker with Hydraulic Magnetic Trip Technology. Supports both 120/208V and 120/240V applications
Features
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- HYDRAULIC MAGNETIC – Precision trip technology ensures that the main breaker operates as intended from -40°C to 85°C (-40°F to 185°F) without re-rating
- INTUITIVE – Color indicators in the handle show operational status at-a-glance
- COMFORTABLE – Rocker-style switches require less activation force than traditional circuit breakers *Designed for Leviton Load Centers only
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Mechanical Specifications
- Lug Size
- Up to 2/0 AWG Cu/Al
Product Features
- Dimensions
- 3.9" H x 2.0" W x 3.1" D
- Warranty
- Limited 10-Year Warranty (Mechanical), Limited 2-Year Warranty (Electronic)
- Wiring
- Direct Wiring Through Breaker Terminals
SmartNo
Weight0.85 lbs.
Electrical Specifications
- Amperage
- 90 A
- Operating Temperature
- -45°C to 80°C
- Short Circuit Current Rating
- 10 KA
- Voltage
- 120/208 and 120/240 VAC
Breaker TechnologyHydraulic Magnetic
Pole2
TypeStandard
Standards & Certifications
- EMC Compatibility
- Yes
- RoHS
- Yes
FCCYes
UL 489Yes
